OUTDOOR VARIABLE LOAD STRENGTH SERIES
VARIABLE LOAD STRENGTH EQUIPMENT
OptiFit Outdoor Variable Load Strength equipment covers all major muscle groups, it has been designed for unsupervised areas and is suitable for users of 14 years or older, 1.4m in height minimum and for any ability level. There are three ranges of OptiFit Outdoor Variable Load Strength. OptiFit Ignite is 50% narrower than our Strive range allowing more equipment to be installed in the same footprint. Our Prime range has more specialists performance pieces, is also narrower than our Strive range. Each range requires fixing to concrete foundations
Key features of all our variable load strength equipment:
- Maintenance free construction
- Requires concrete foundations or pads for installation
- Independent movement
- Suitable for users of 14 years or older and 1.4m in height
- Built to UK & European standards
- 5 years warranty

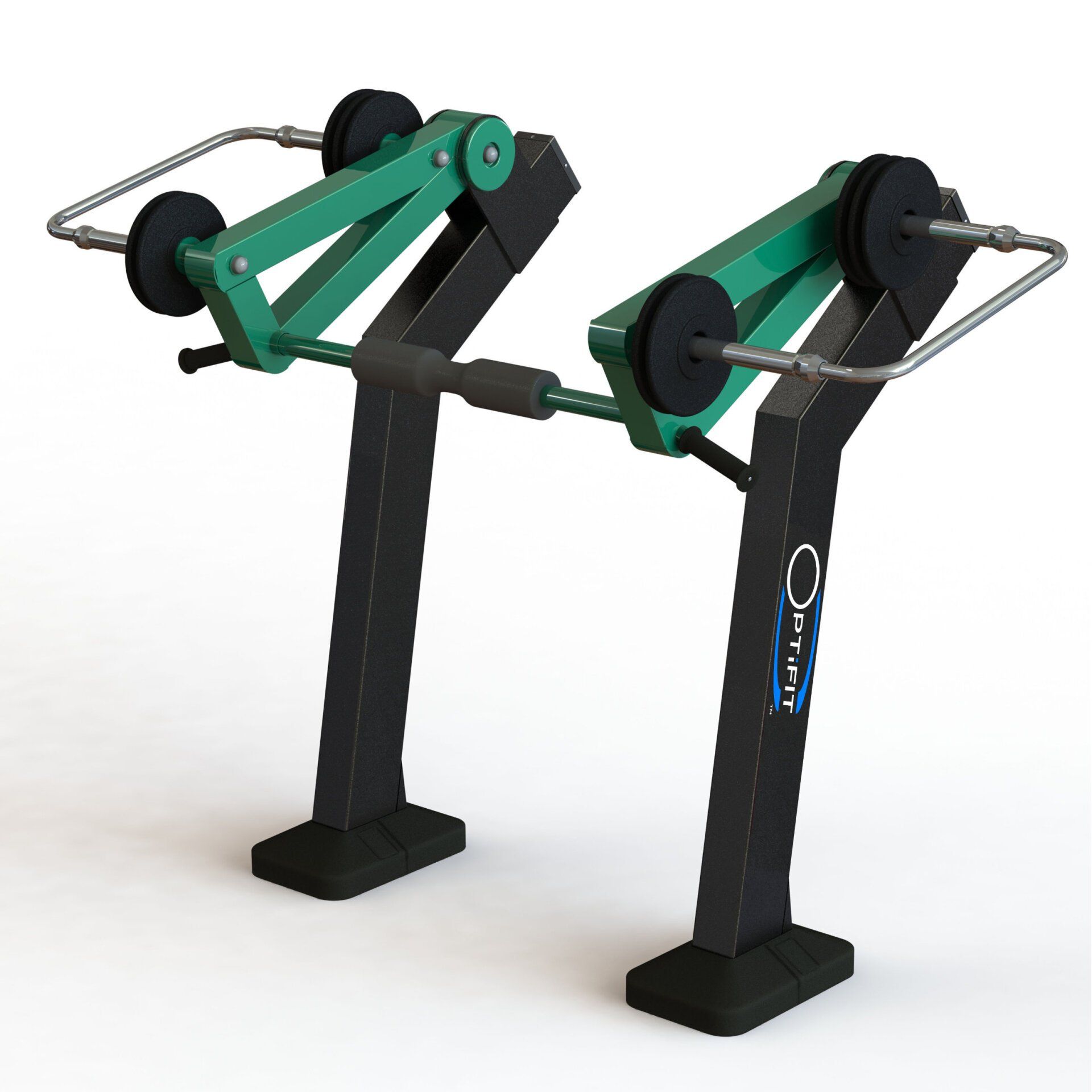

OPTSTR-001
OptiFit Strive Outdoor Variable Load Squat

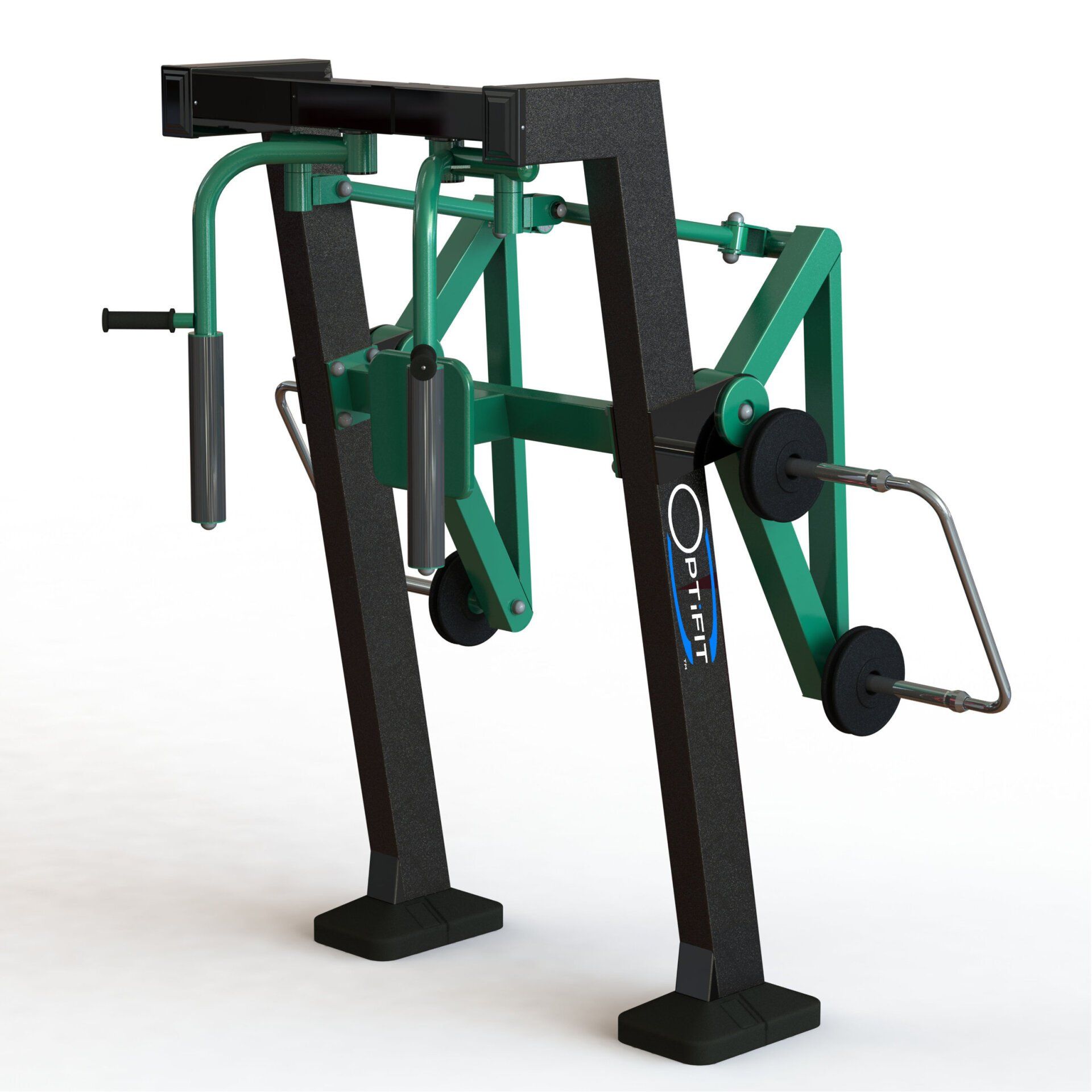

OPTSTR-002
OptiFit Strive Outdoor Variable Load Standing Fly
OPTSTR-003

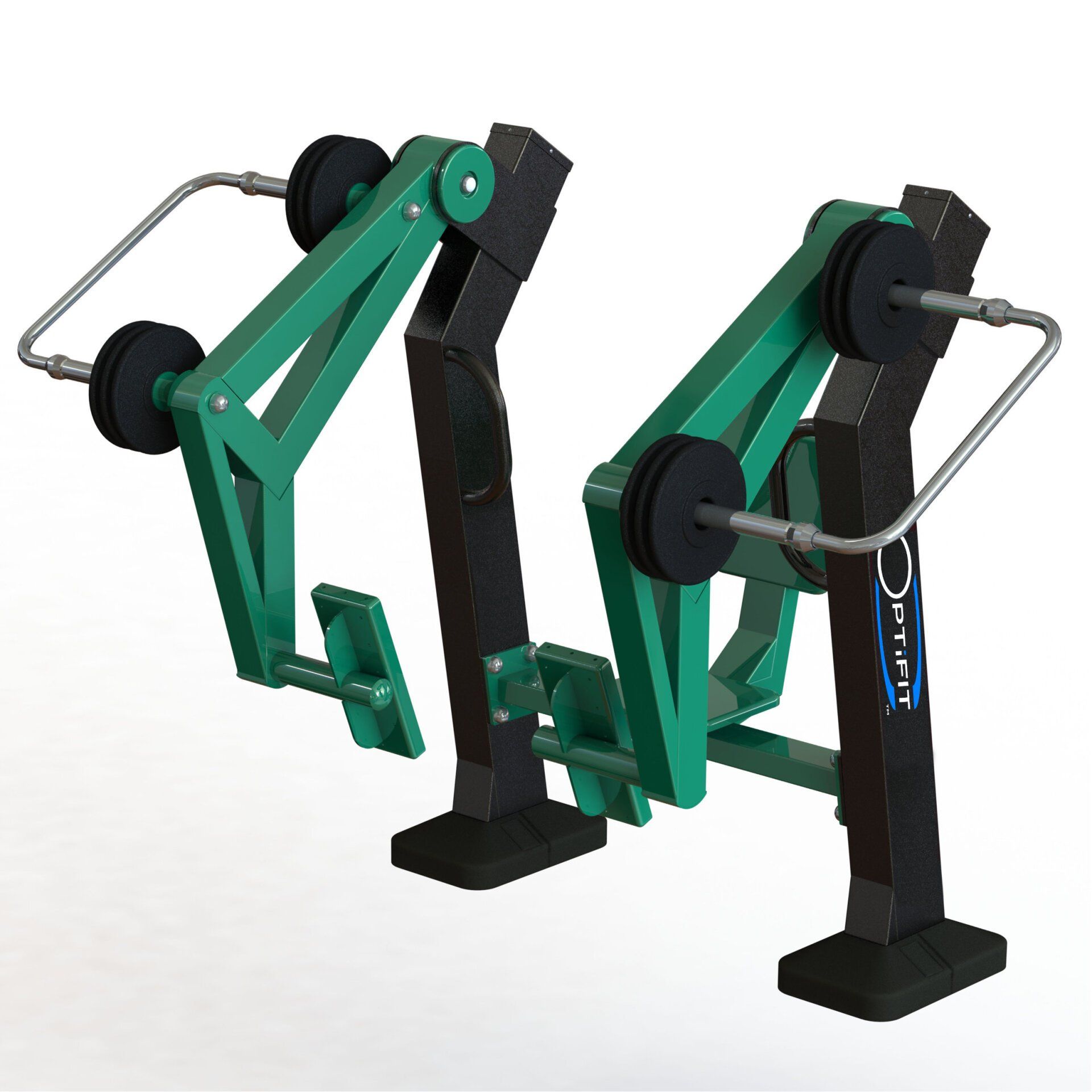

OptiFit Strive Outdoor Variable Load Leg Press
OPTSTR-004

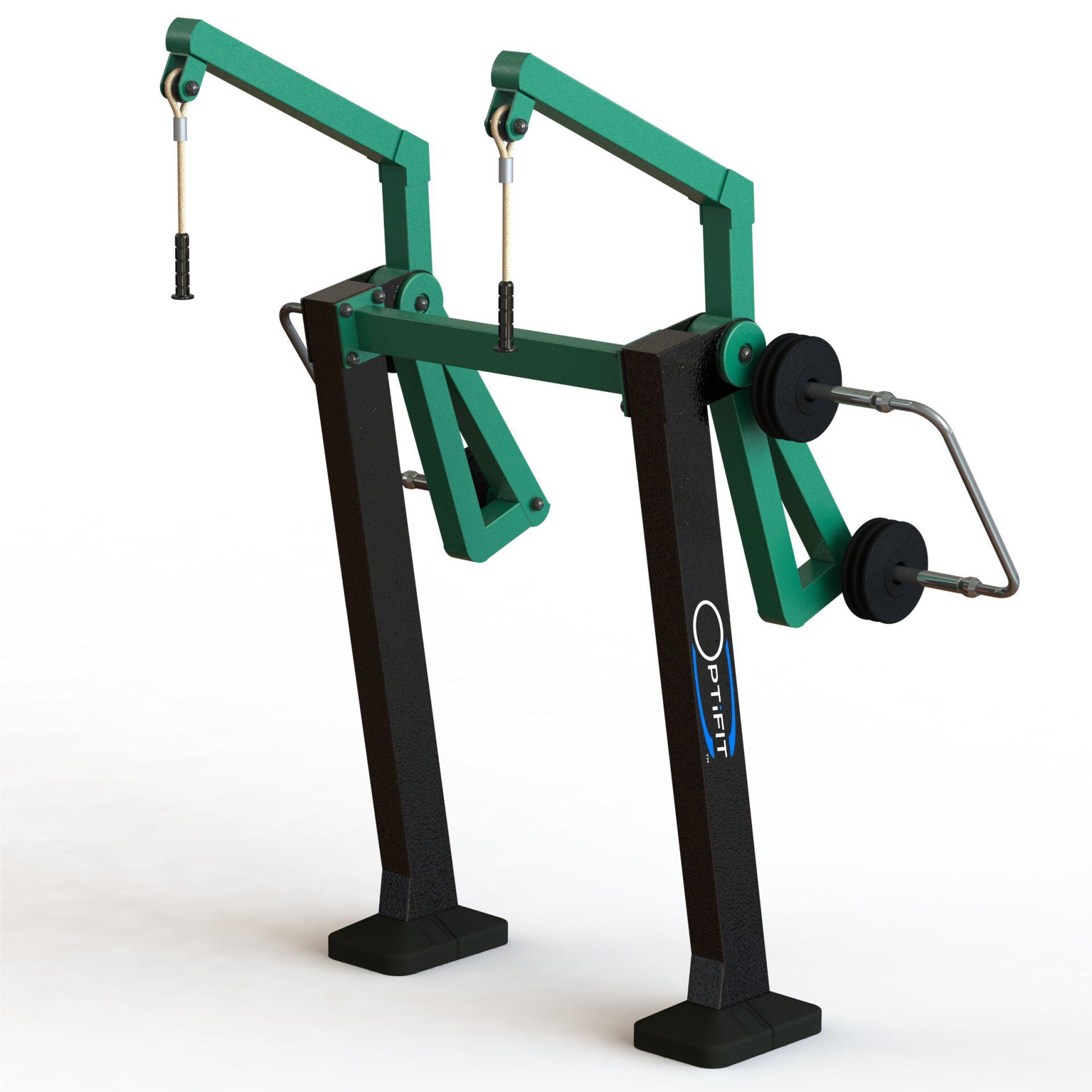

OptiFit Strive Outdoor Variable Load Pulldown
OPTSTR-005

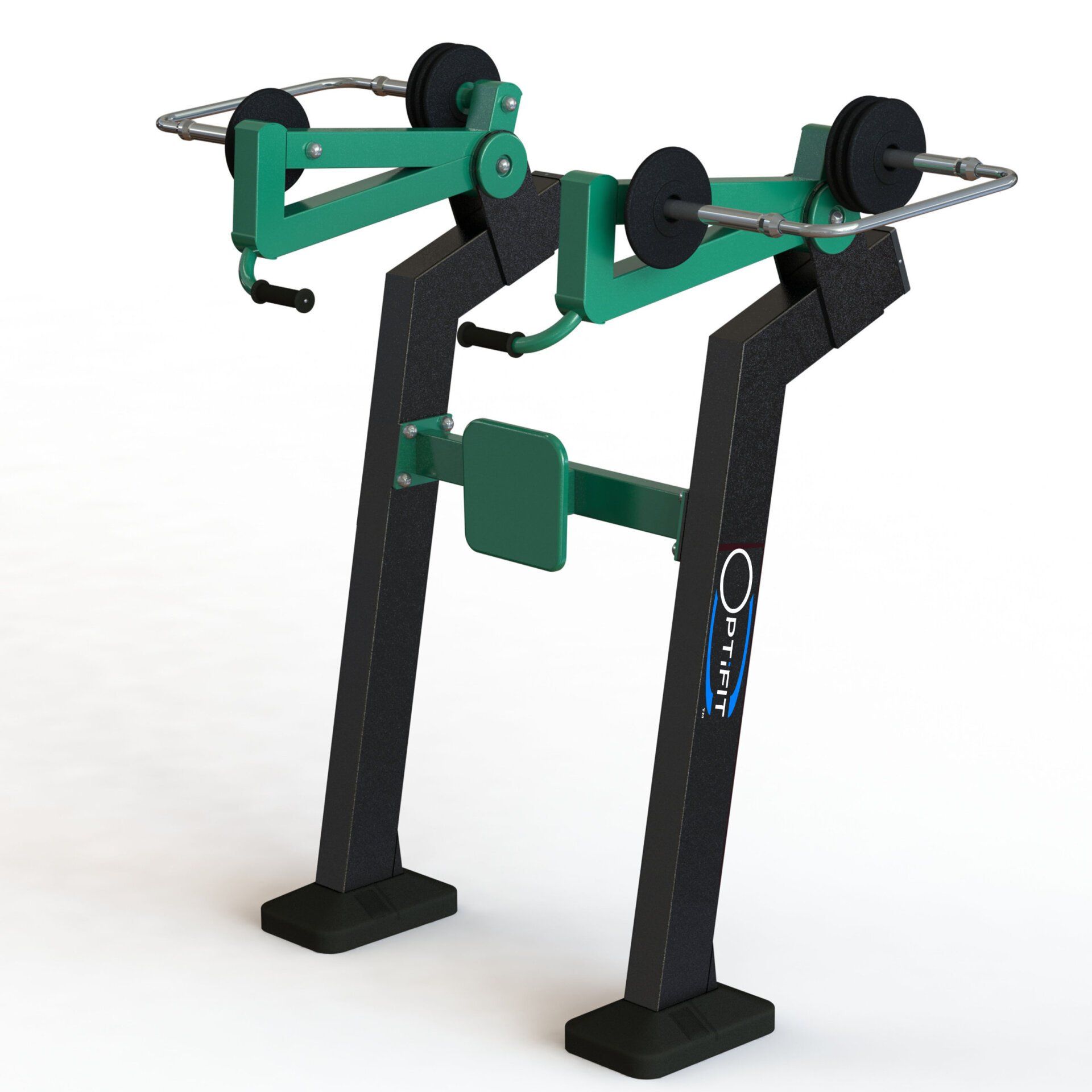

OptiFit Strive Outdoor Variable Load Shoulder Press

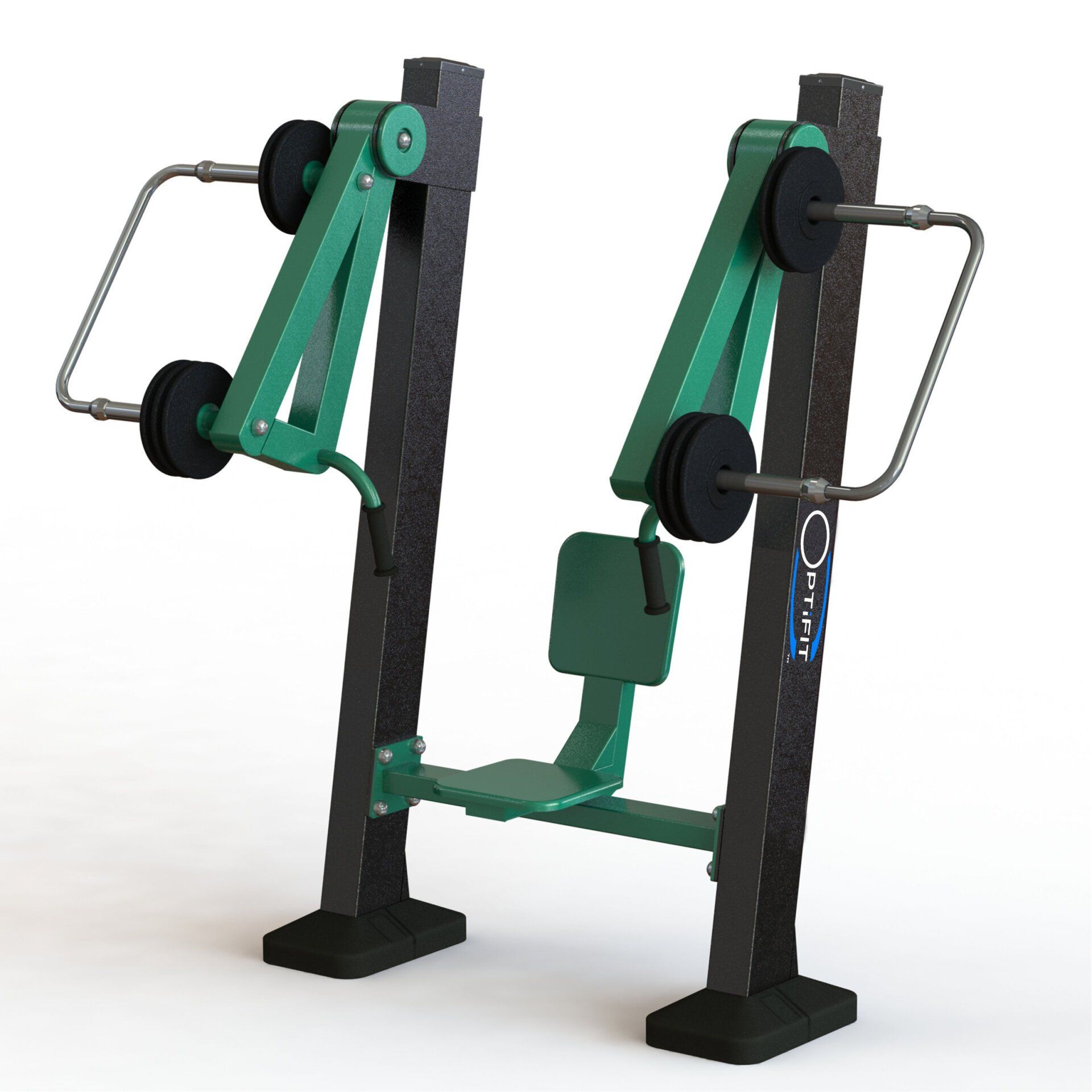

OPTSTR-006
OptiFit Strive Outdoor Variable Load Chest Press

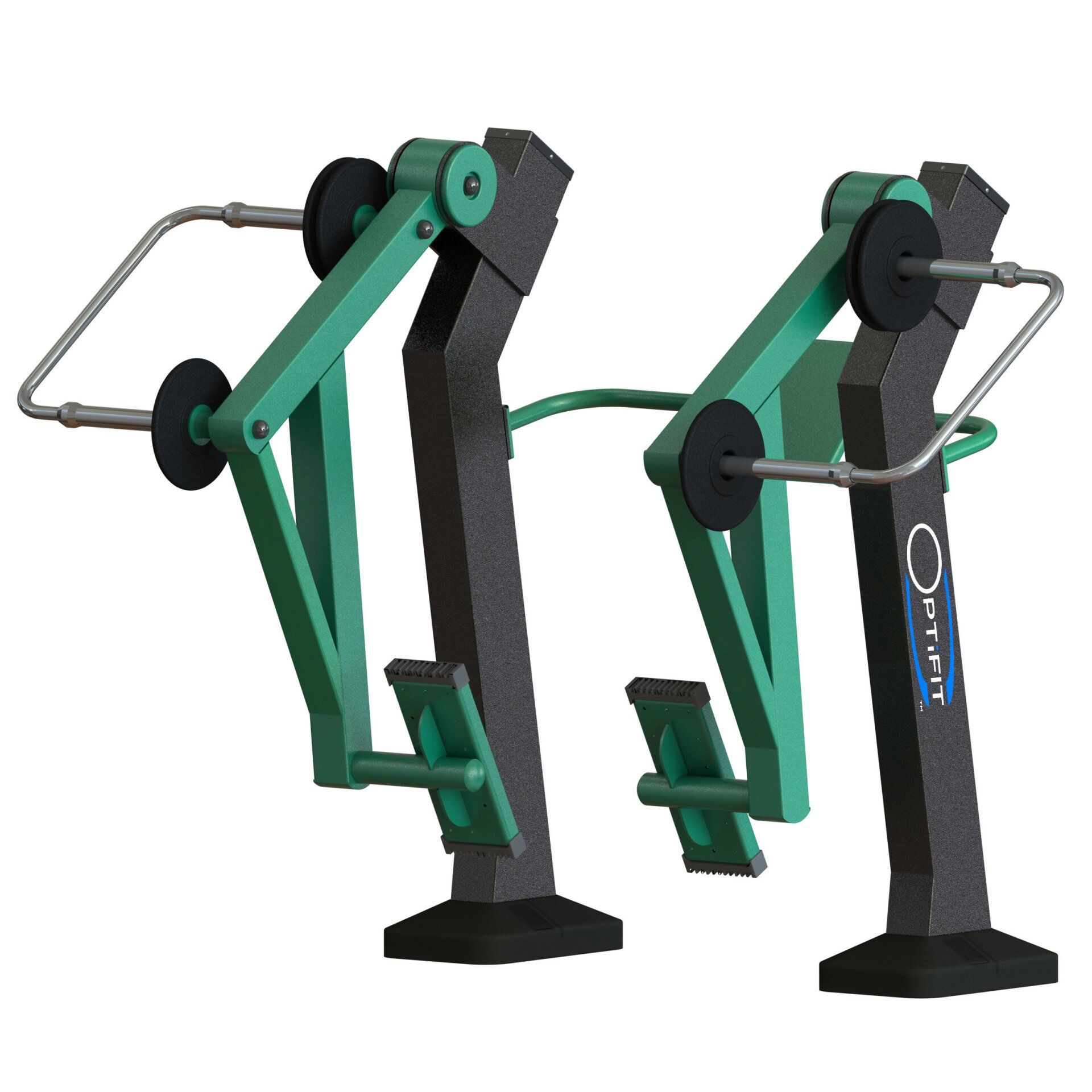

OPTSTR-007
OptiFit Strive Outdoor Variable Load Glute Kickback

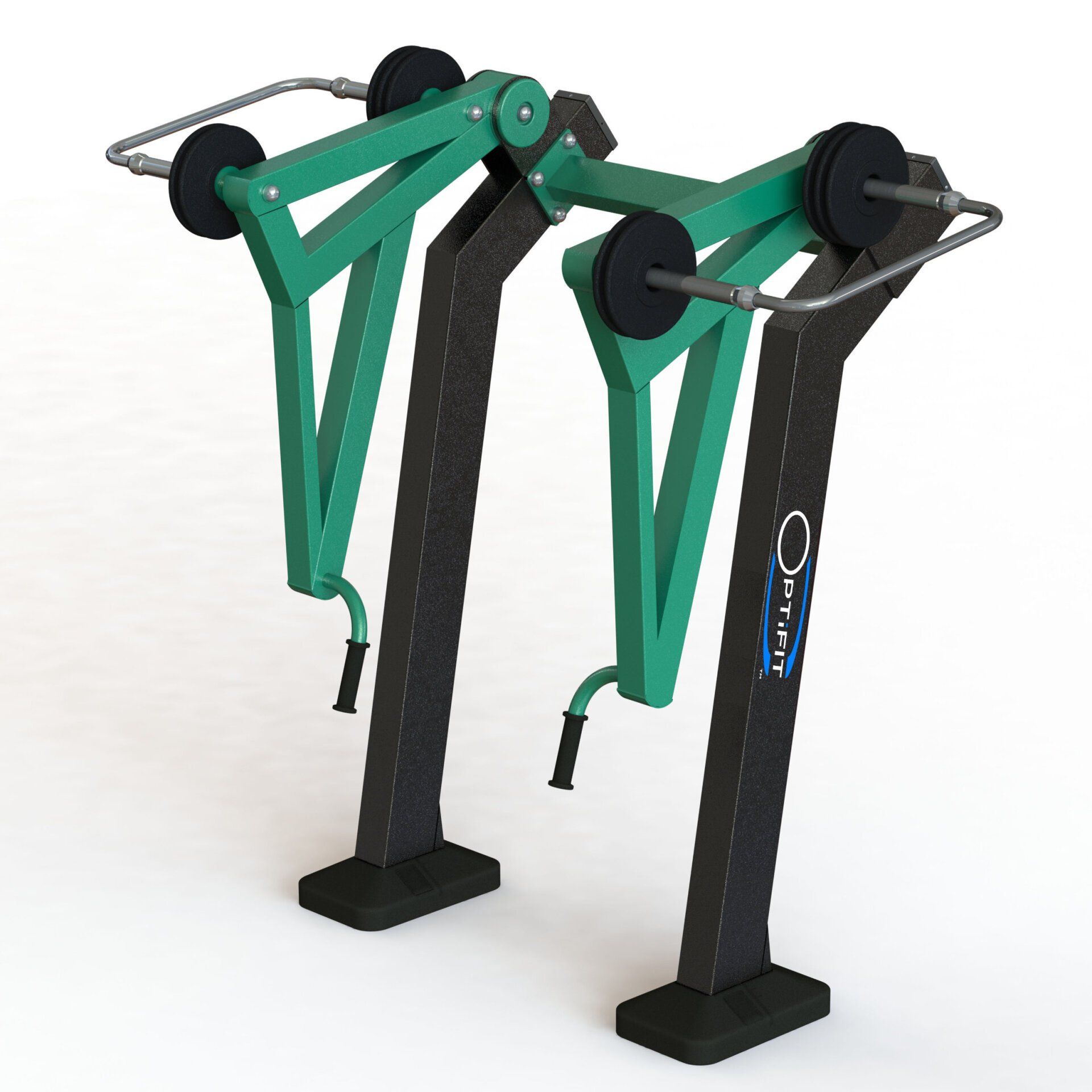

OPTSTR-008
OptiFit Strive Outdoor Variable Load Standing Row

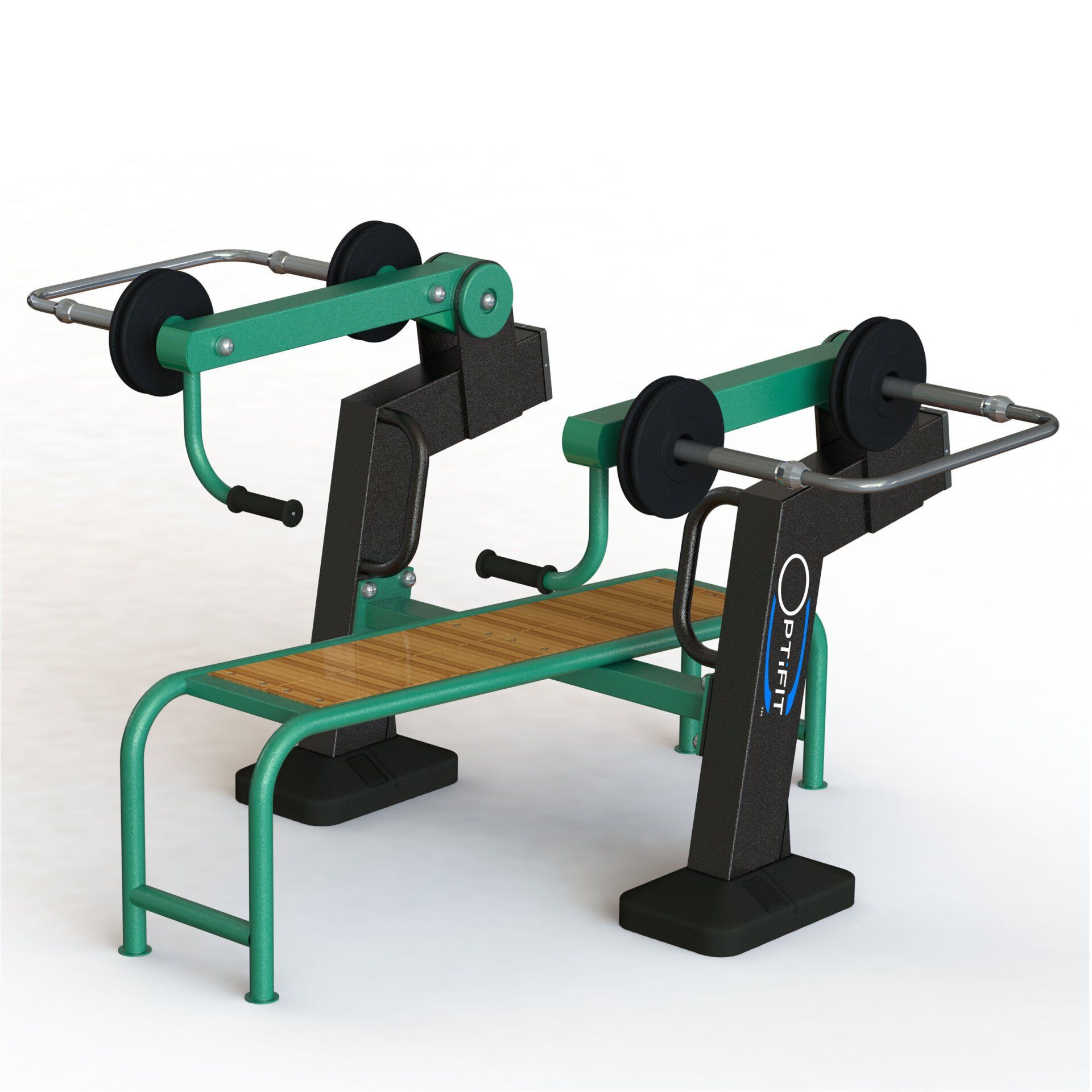

OPTSTR-009
OptiFit Strive Outdoor Variable Load Bench Press

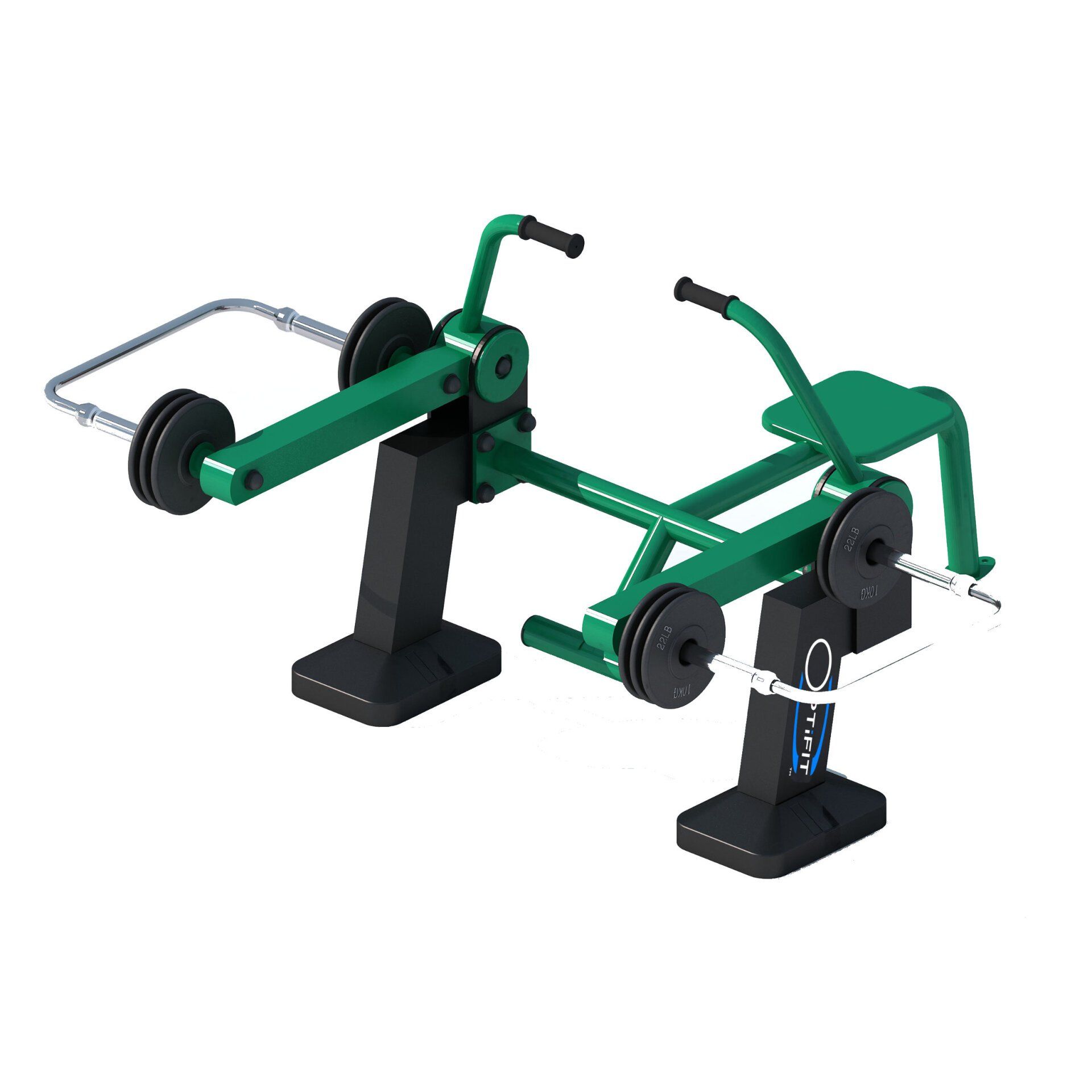

OPTSTR-010
OptiFit Strive Outdoor Variable Load Seated Row
OptiFit Strive Variable Load Strength Specifications
| Product Code | Model | Dimensions | Weight | Recommended Safety Area | Weight Load |
|---|---|---|---|---|---|
| OPTSTR-001 | OptiFit Strive Squat | L 1160mm x W 2080mm x H 1600mm | 130kg | L 4138mm x W 5107mm | 10 - 60kg |
| OPTSTR-002 | OptiFit Strive Standing Fly | L 1180mm x W 2080mm x H 2100mm | 230kg | L 4138mm x W 5107mm | 10 - 60kg |
| OPTSTR-003 | OptiFit Strive Leg Press | L 1260mm x W 2080mm x H 1530mm | 150kg | L 4103mm x W 5104mm | 10 - 60kg |
| OPTSTR-004 | OptiFit Strive Lat Pulldown | L 1200mm x W 2080mm x H 2400mm | 160kg | L 4333mm x W 5104mm | 10 - 60kg |
| OPTSTR-005 | OptiFit Strive Shoulder Press | L 1160mm x W 2080mm x H 1900mm | 165kg | L 4005mm x W 5116mm | 10 - 60kg |
| OPTSTR-006 | OptiFit Strive Chest Press | L 800mm x W 2080mm x H 1760mm | 170kg | L 3871mm x W 5105mm | 10 - 60kg |
| OPTSTR-007 | OptiFit Strive Glute Kickback | L 1160mm x W 2080mm x H 1590mm | 155kg | L 4200mm x W 5087mm | 10 - 60kg |
| OPTSTR-008 | OptiFit Strive Standing Row | L 1160mm x W 2080mm x H 1960mm | 150kg | L 4144mm x W 5116mm | 10 - 60kg |
| OPTSTR-009 | OptiFit Strive Bench Press | L 1610mm x W 2080mm x H 1224mm | 160kg | L 4610mm x W 5116mm | 10 - 60kg |
| OPTSTR-010 | OptiFit Strive Seated Row | L 1770mm x W 2080mm x H 1045mm | 155kg | L 4691mm x W 5969mm | 10 - 60kg |

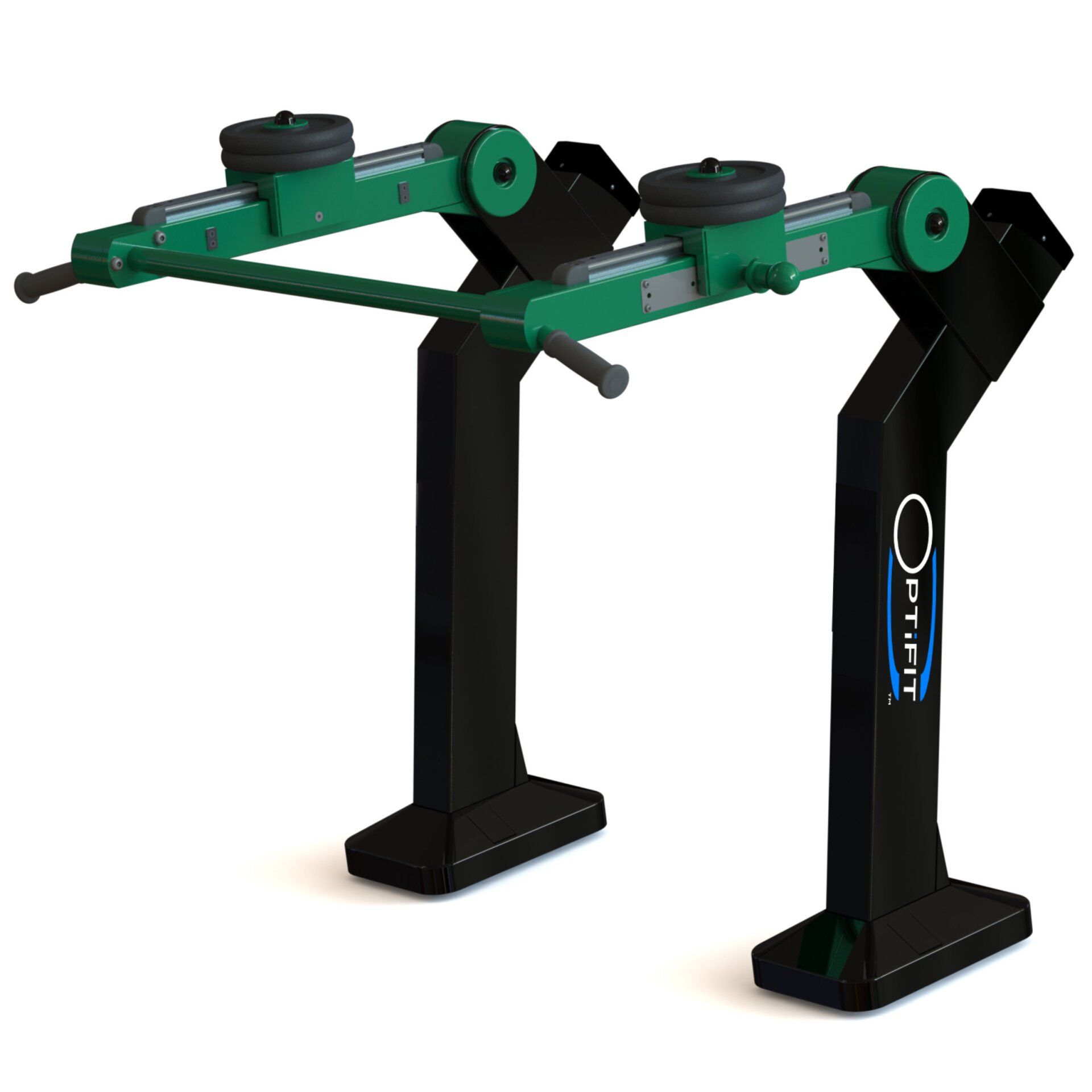

OPTIGN-001
OptiFit Ignite Outdoor Variable Load Squat

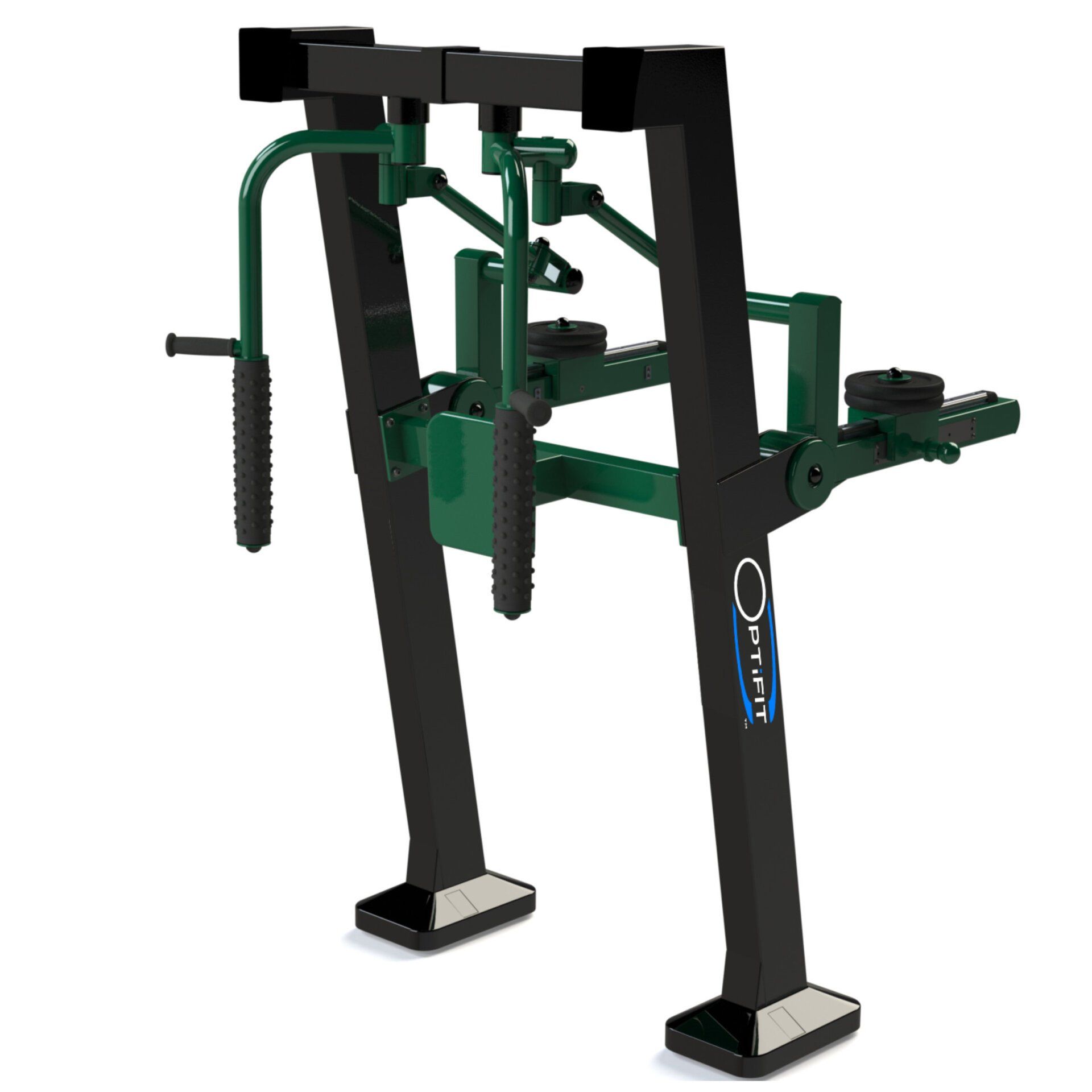

OPTIGN-002
OptiFit Ignite Outdoor Variable Load Standing Fly

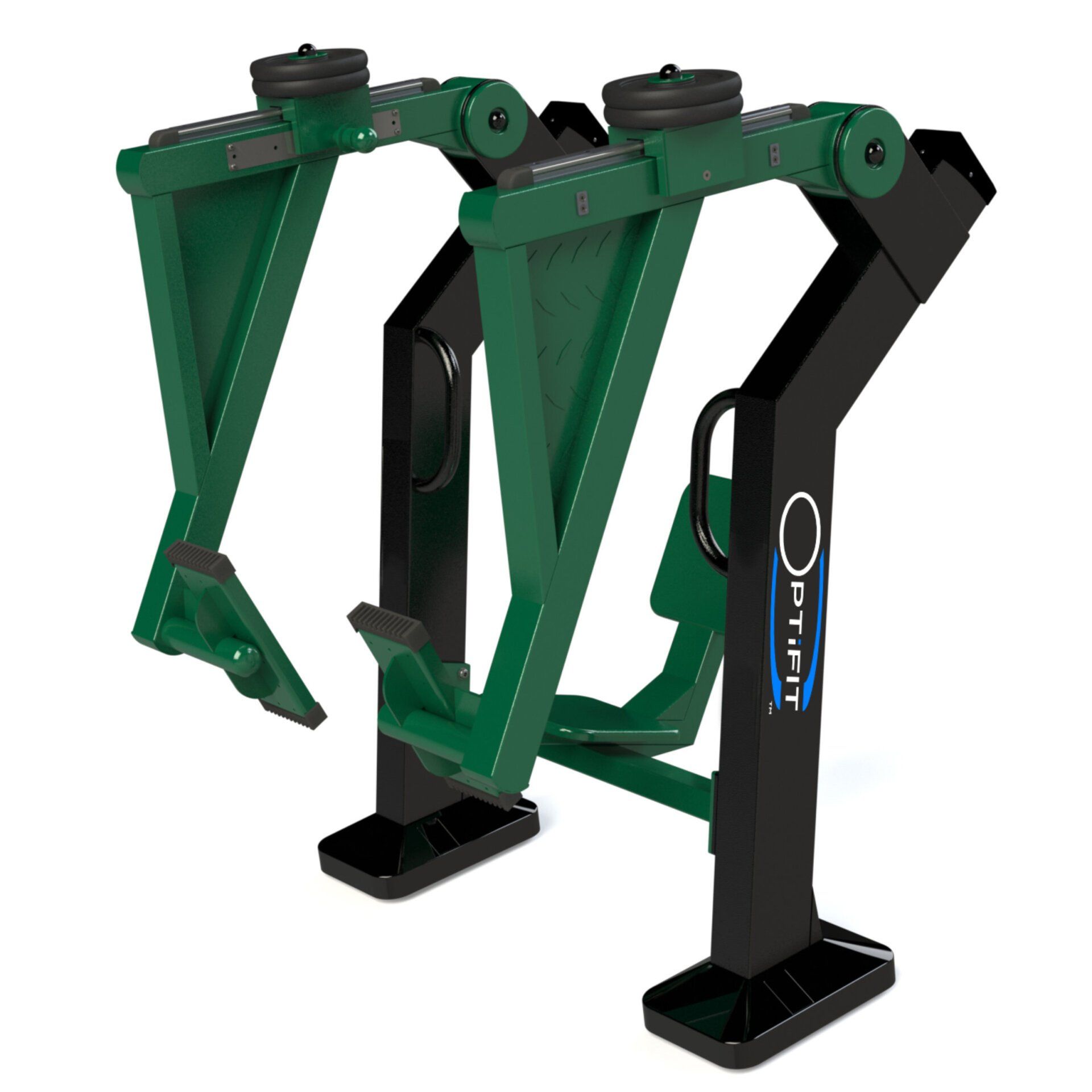

OPTIGN-003
OptiFit Ignite Outdoor Variable Load Leg Press

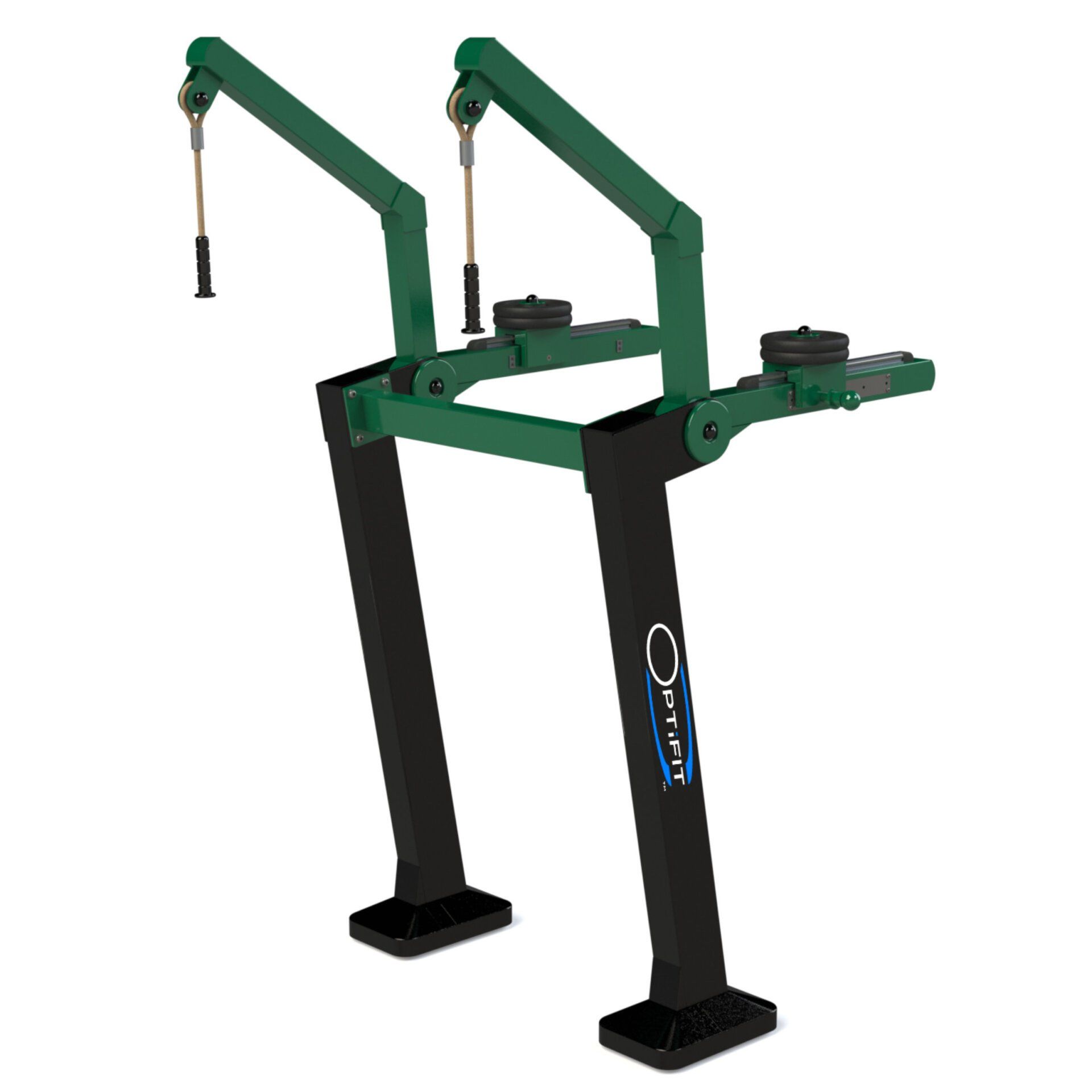

OPTIGN-004
OptiFit Ignite Outdoor Variable Load Pulldown
OPTIGN-005

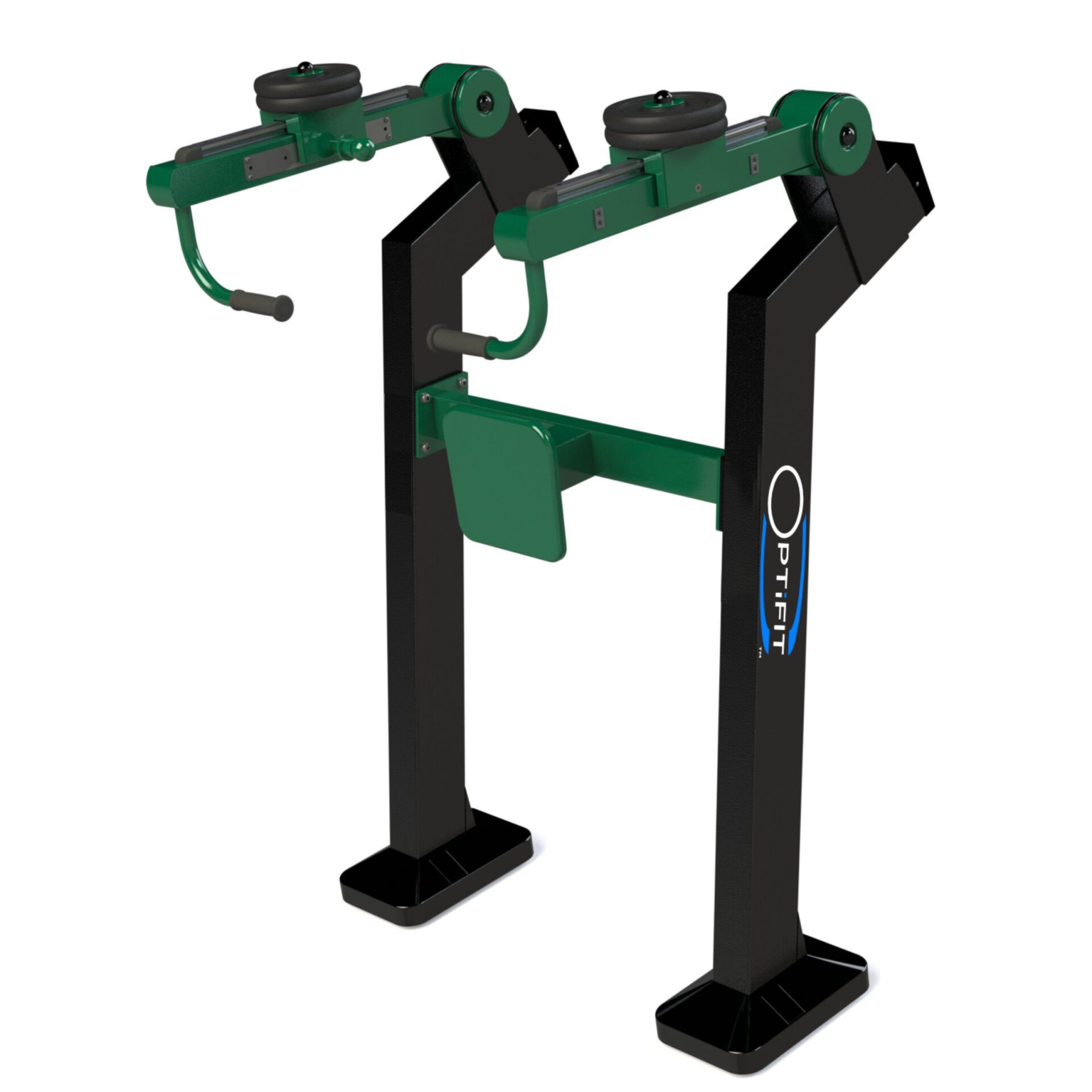

OptiFit Ignite Outdoor Variable Load Shoulder Press
OPTIGN-006

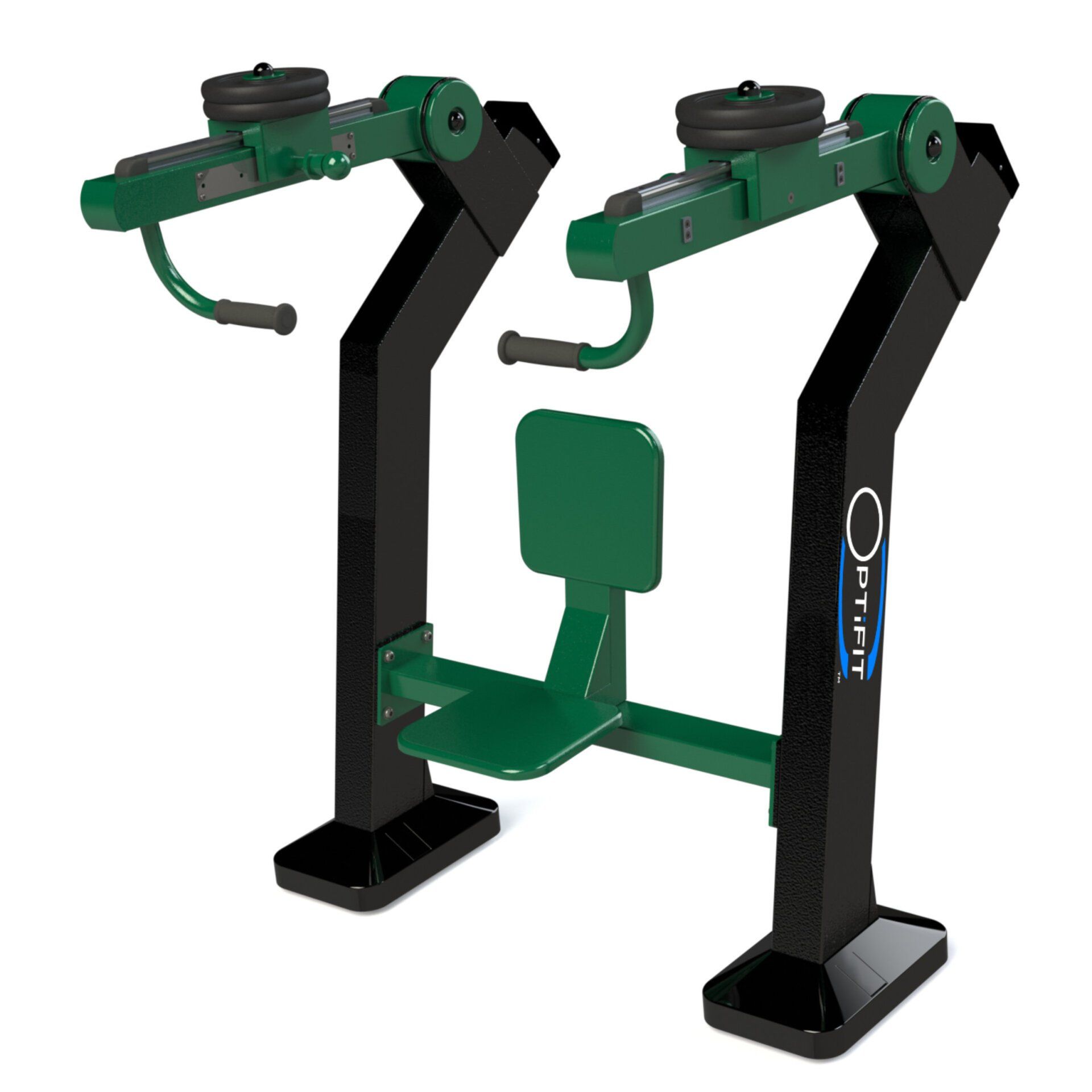

OptiFit Ignite Outdoor Variable Load Chest Press

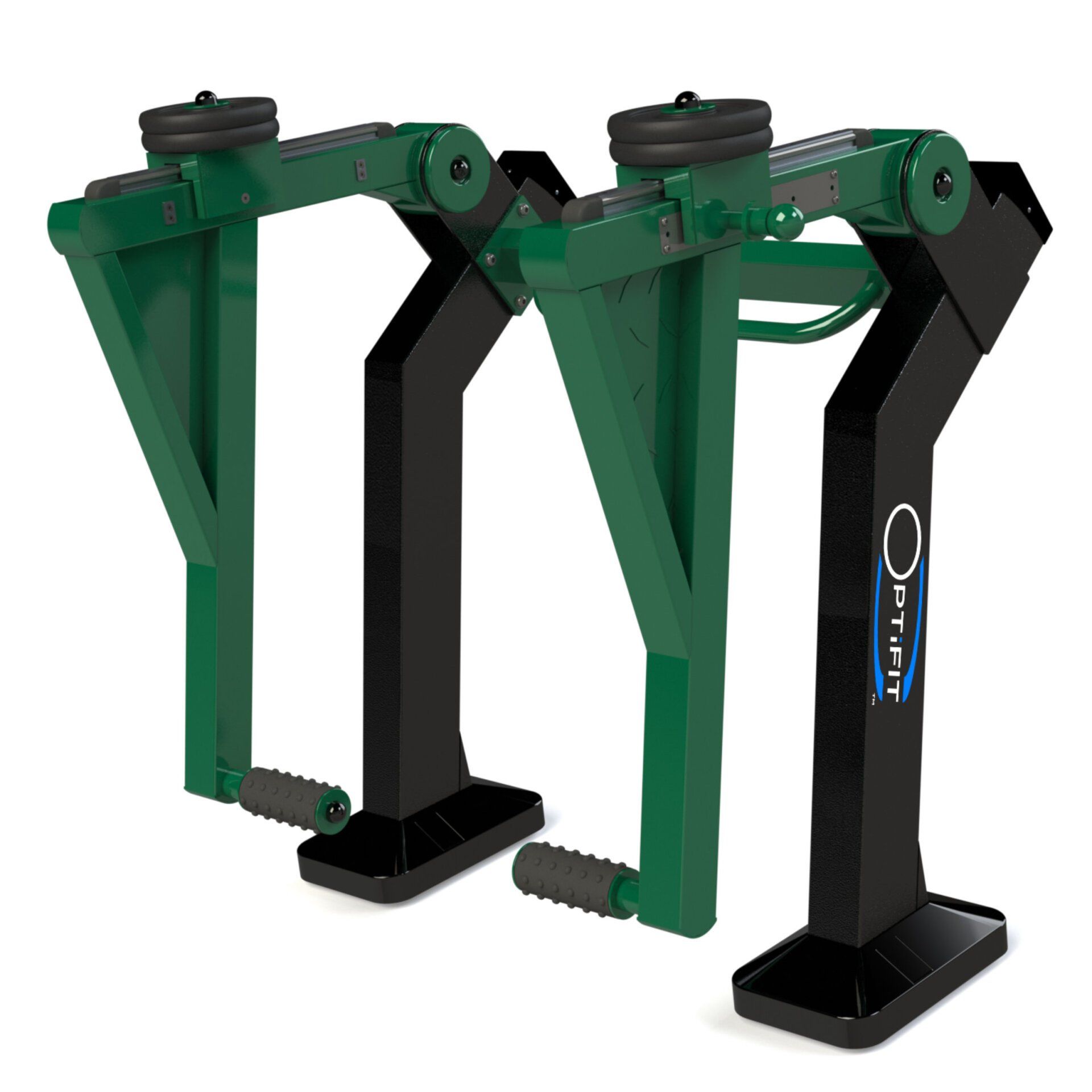

OPTIGN-007
OptiFit Ignite Outdoor Variable Load Glute Kickback

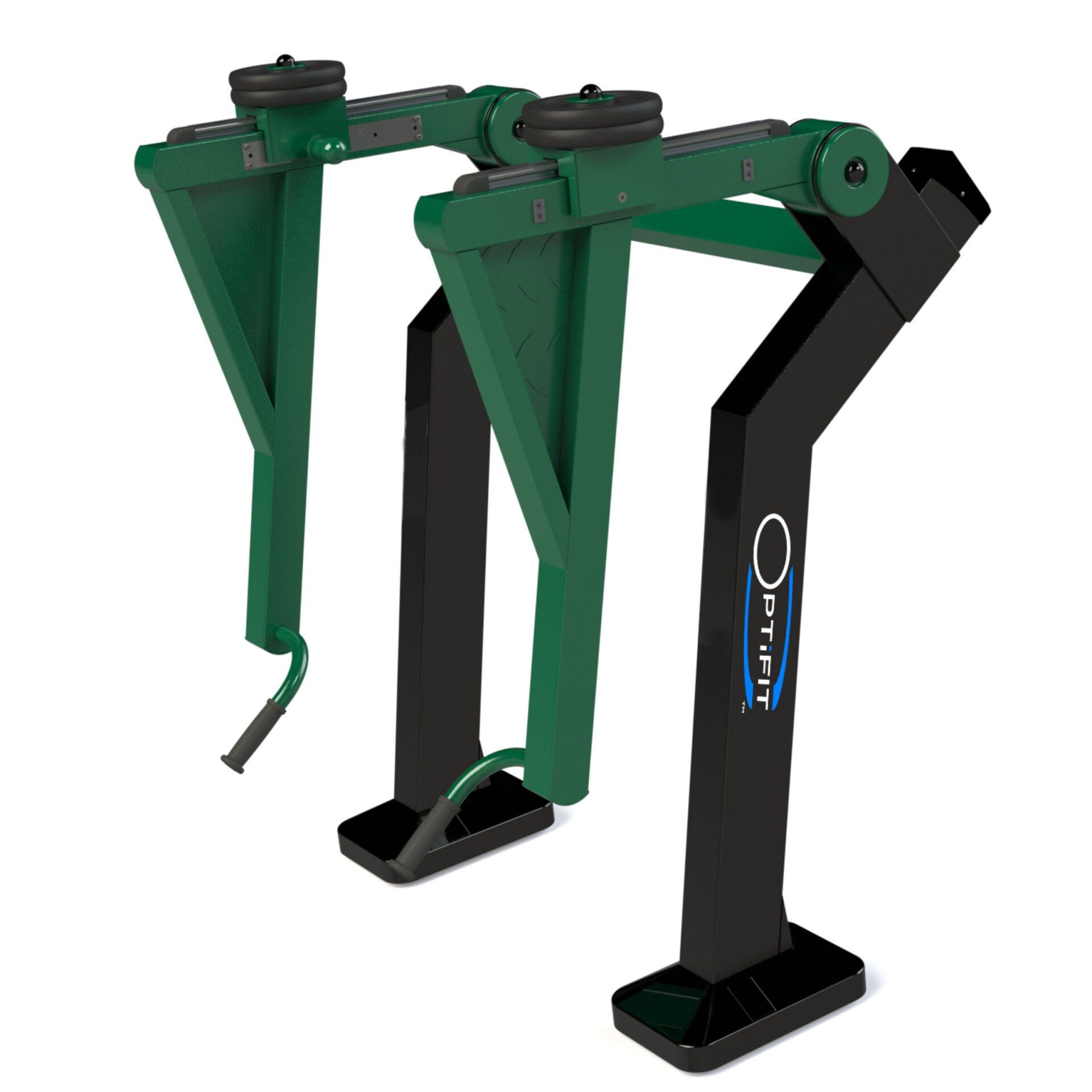

OPTIGN-008
OptiFit Ignite Outdoor Variable Load Standing Row

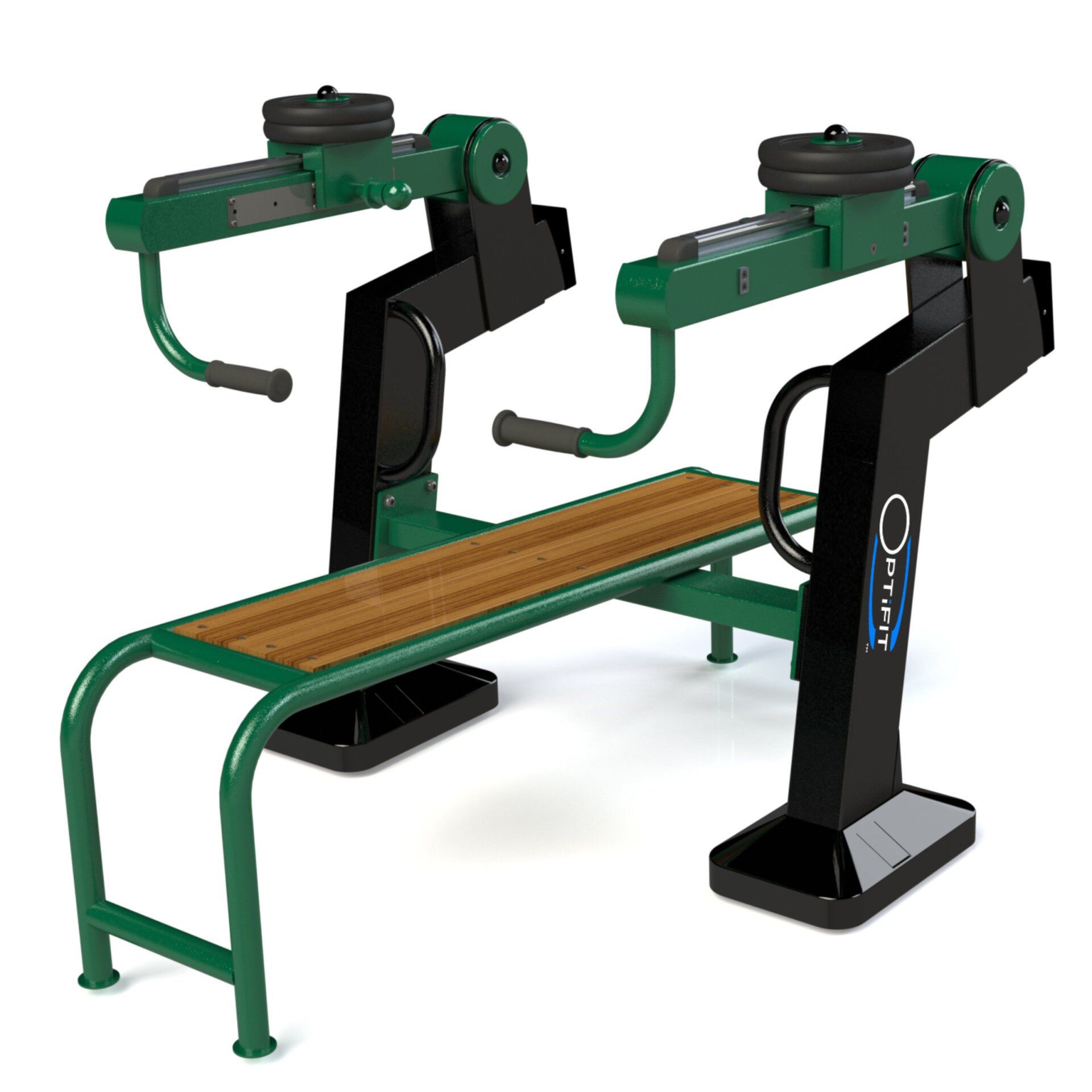

OPTIGN-009
OptiFit Ignite Outdoor Variable Load Bench Press
OptiFit Ignite Variable Load Strength Specifications
| Product Code | Model | Dimensions | Weight | Recommended Safety Area | Weight Load |
|---|---|---|---|---|---|
| OPTIGN-001 | OptiFit Ignite Squat | L 1167mm x W 1410mm x H 1428mm | 130kg | L 4156mm x W 4451mm | 20 - 60kg |
| OPTIGN-002 | OptiFit Ignite Standing Fly | L 1668mm x W 1350mm x H 2180mm | 230kg | L 4465mm x W 4452mm | 20 - 60kg |
| OPTIGN-003 | OptiFit Ignite Leg Press | L 1249mm x W 1270mm x H 1757mm | 150kg | L 4365mm x W 4293mm | 20 - 60kg |
| OPTIGN-004 | OptiFit Ignite Lat Pulldown | L 1610mm x W 1270mm x H 2445mm | 160kg | L 4559mm x W 4452mm | 20 - 60kg |
| OPTIGN-005 | OptiFit Ignite Shoulder Press | L 1063mm x W 1270mm x H 2001mm | 165kg | L 4095mm x W 4452mm | 20 - 60kg |
| OPTIGN-006 | OptiFit Ignite Chest Press | L 1146mm x W 1270mm x H 1556mm | 170kg | L 4143mm x W 4223mm | 20 - 60kg |
| OPTIGN-007 | OptiFit Ignite Glute Kickback | L 1112mm x W 1270mm x H 1422mm | 155kg | L 4112mm x W 4271mm | 20 - 60kg |
| OPTIGN-008 | OptiFit Ignite Standing Row | L 1227mm x W 1270mm x H 1758mm | 150kg | L 4227mm x W 4452mm | 20 - 60kg |
| OPTIGN-009 | OptiFit Ignite Bench Press | L 1621mm x W 1270mm x H 1236mm | 160kg | L 4611mm x W 4226mm | 20 - 60kg |

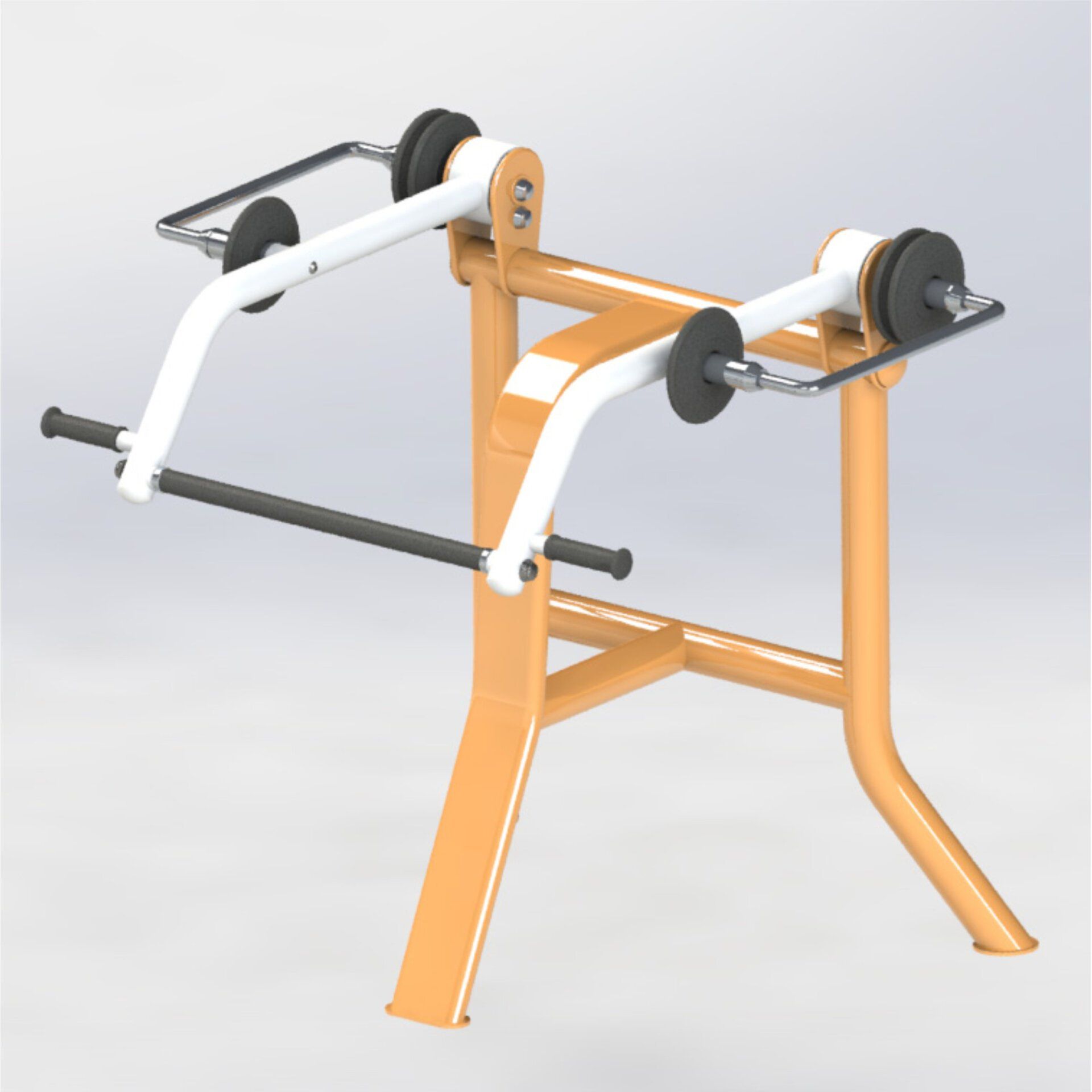

OPTPRI-001
OptiFit Prime Outdoor Variable Load Squat

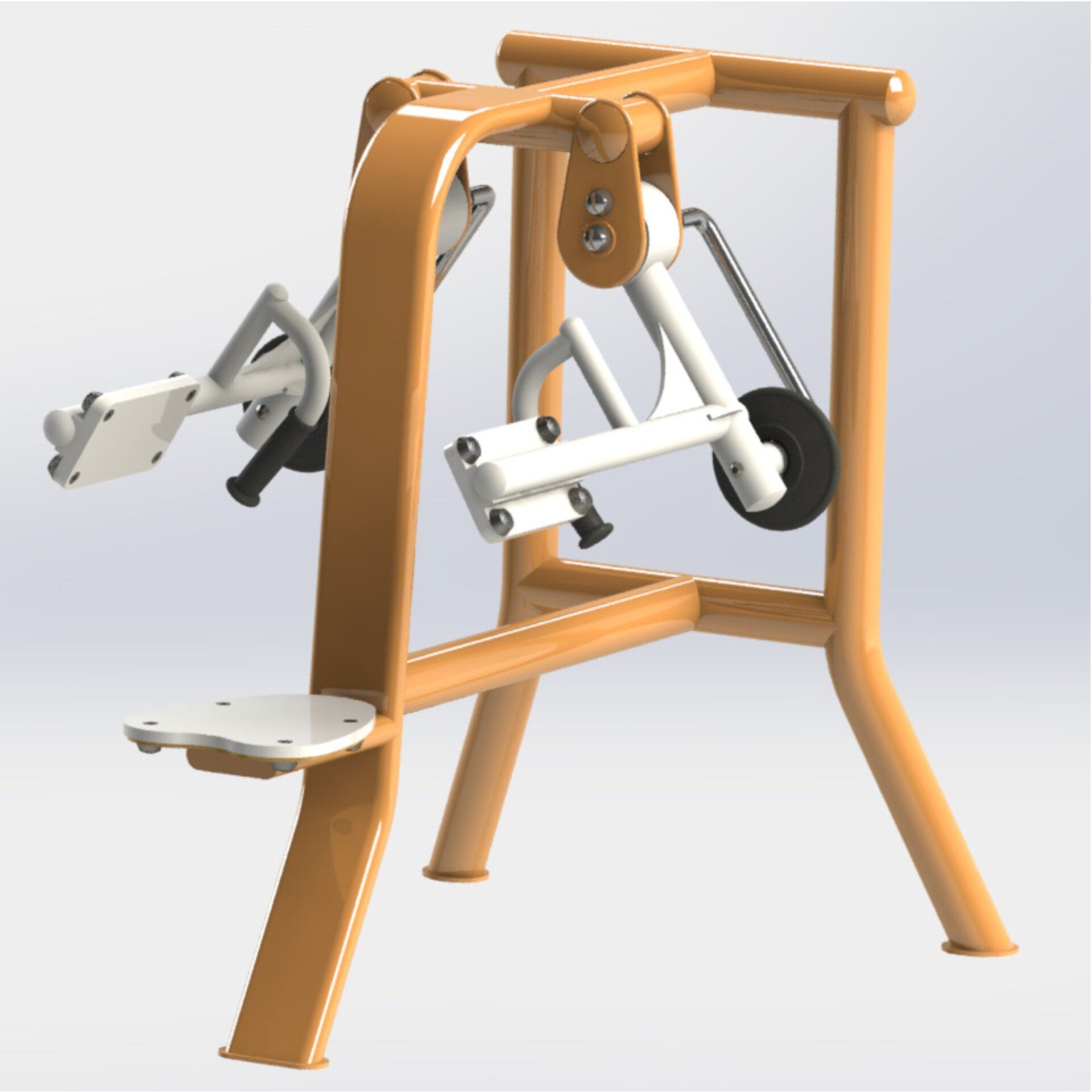

OPTPRI-002
OptiFit Prime Outdoor Variable Load Seated Fly
OPTPRI-003

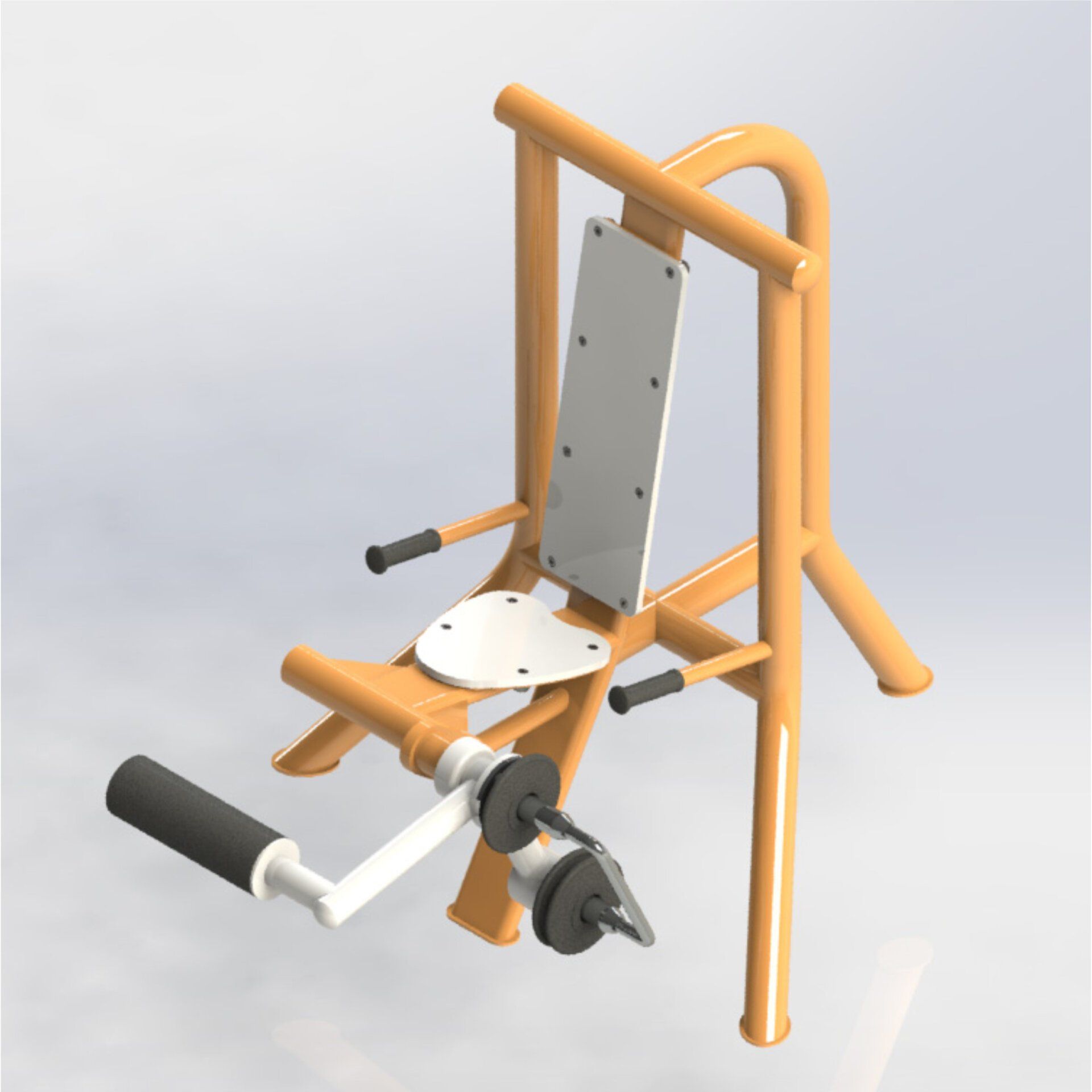

OptiFit Prime Outdoor Variable Load Leg Curl

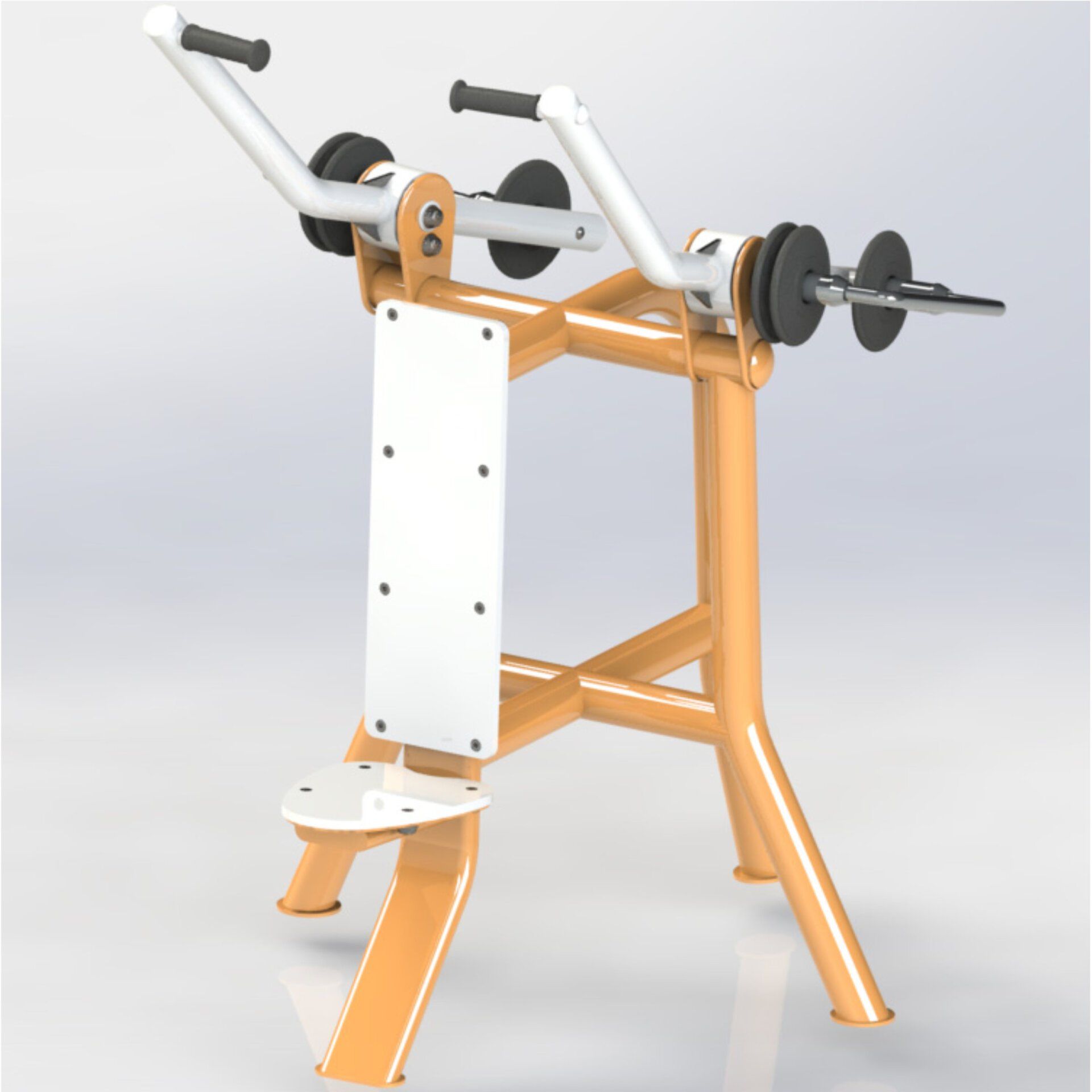

OPTPRI-004
OptiFit Prime Outdoor Variable Load Pulldown

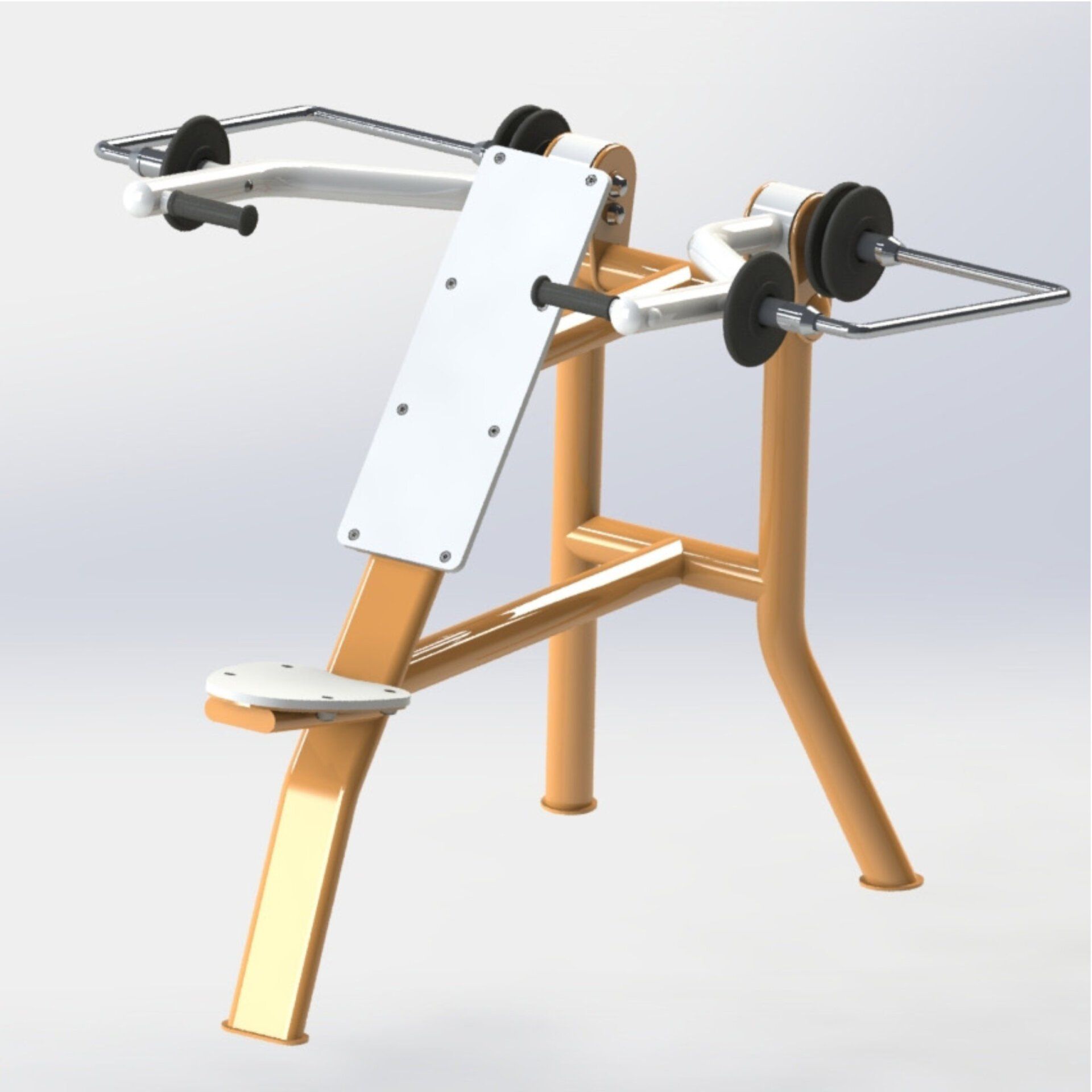

OPTPRI-005
OptiFit Prime Outdoor Variable Load Shoulder Press
OPTPRI-006

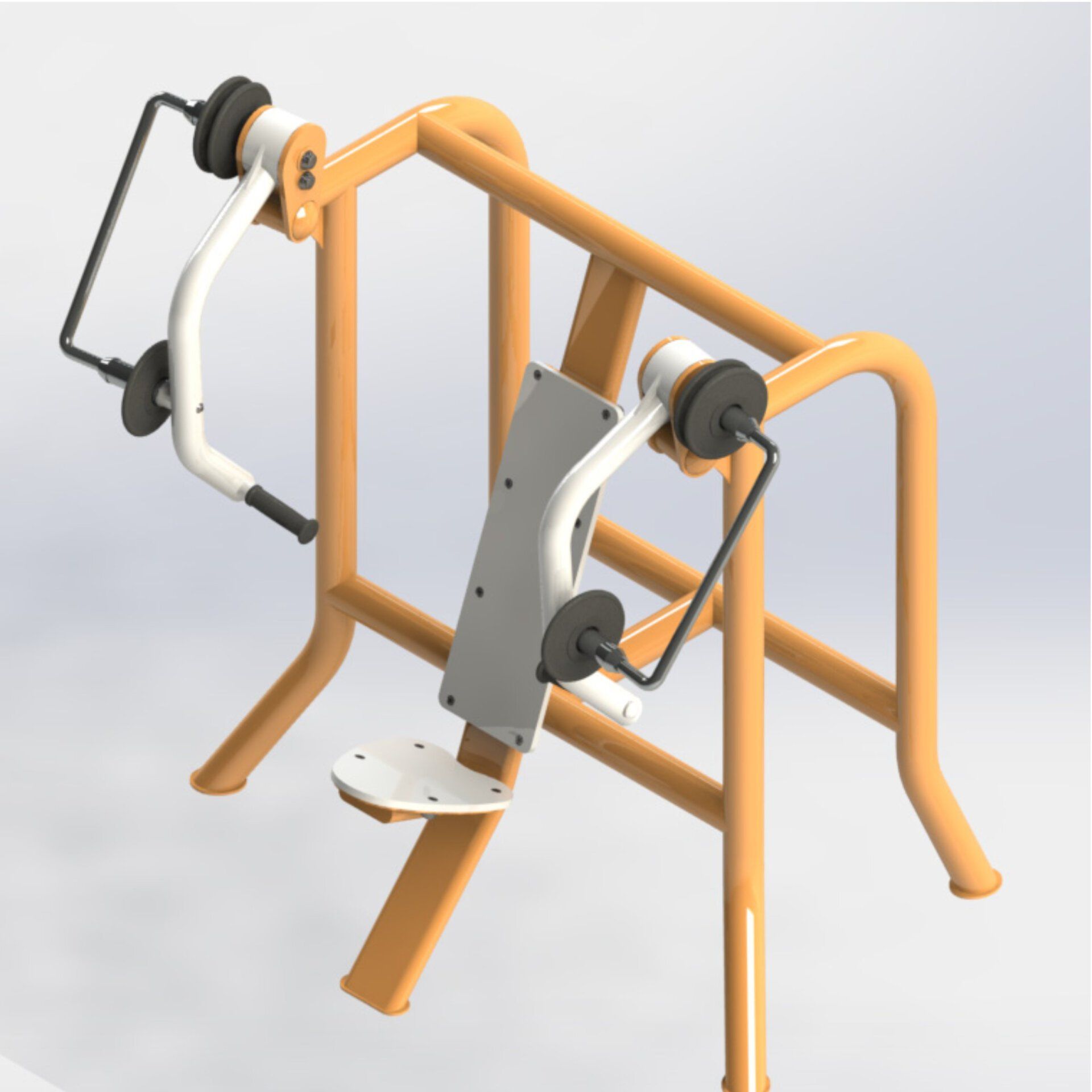

OptiFit Prime Outdoor Variable Load Chest Press

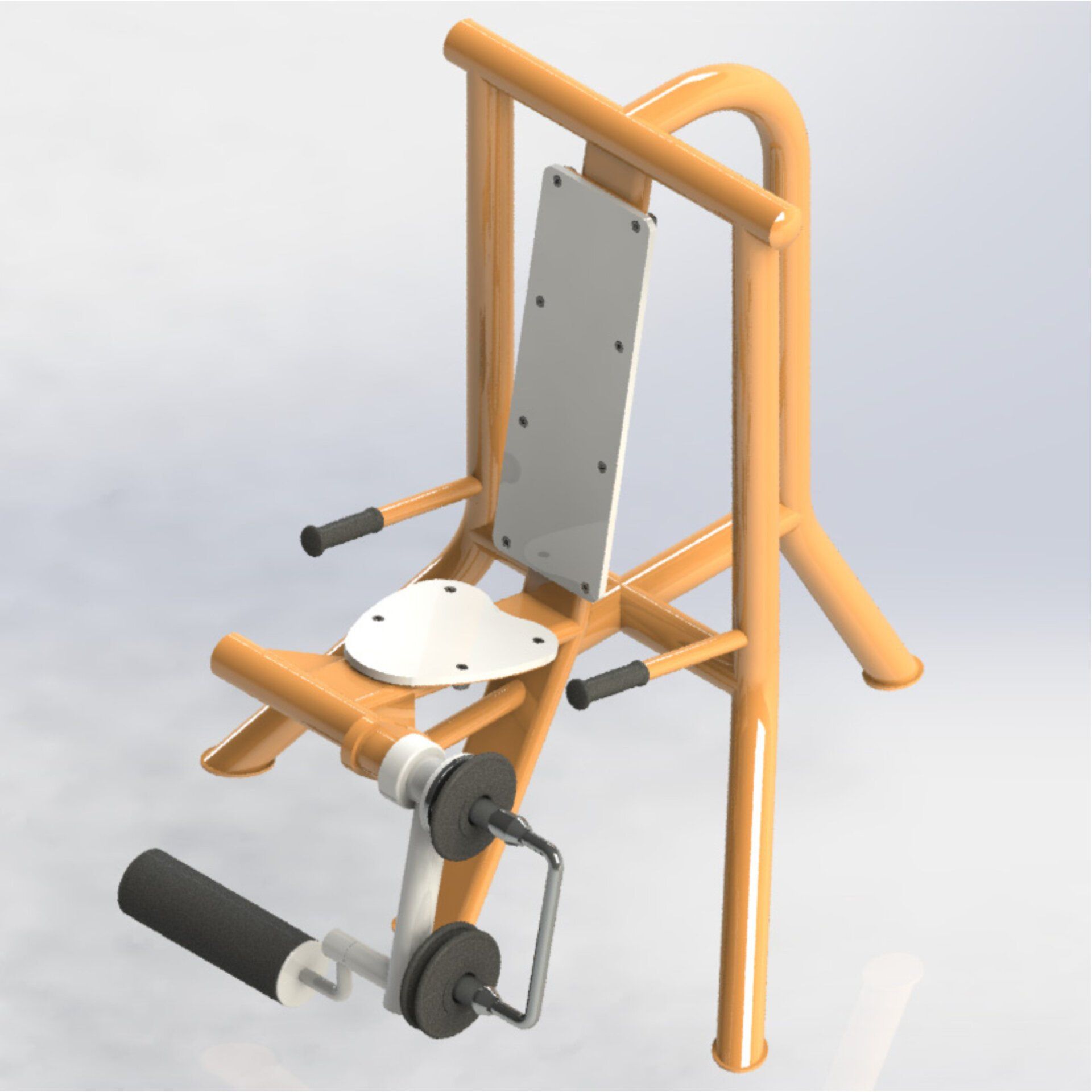

OPTPRI-007
OptiFit Prime Outdoor Variable Load Leg Extension
OPTPRI-008
OptiFit Prime Outdoor Variable Load Standing Leg Curl
OPTPRI-009

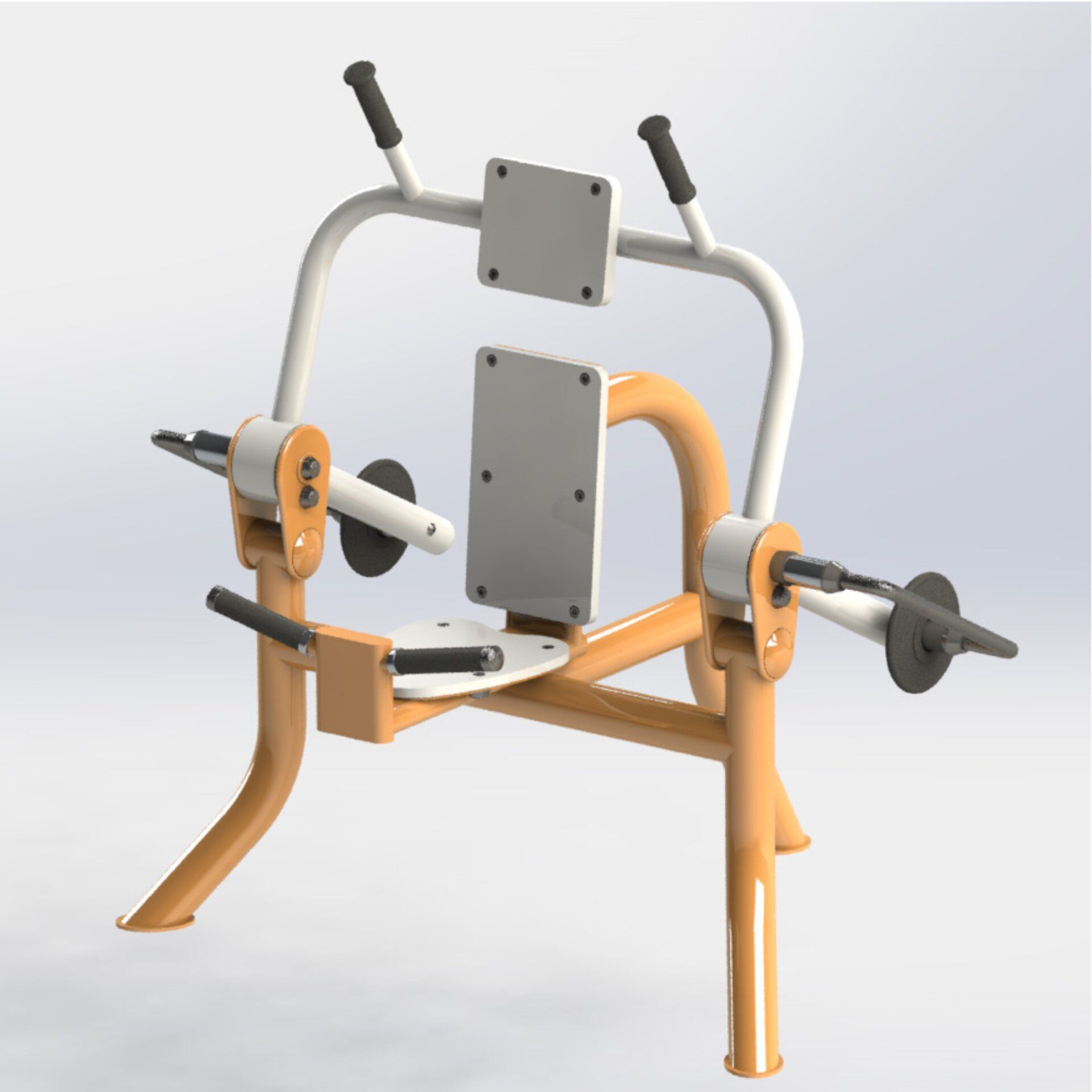

OptiFit Prime Outdoor Variable Load Abdominal Crunch

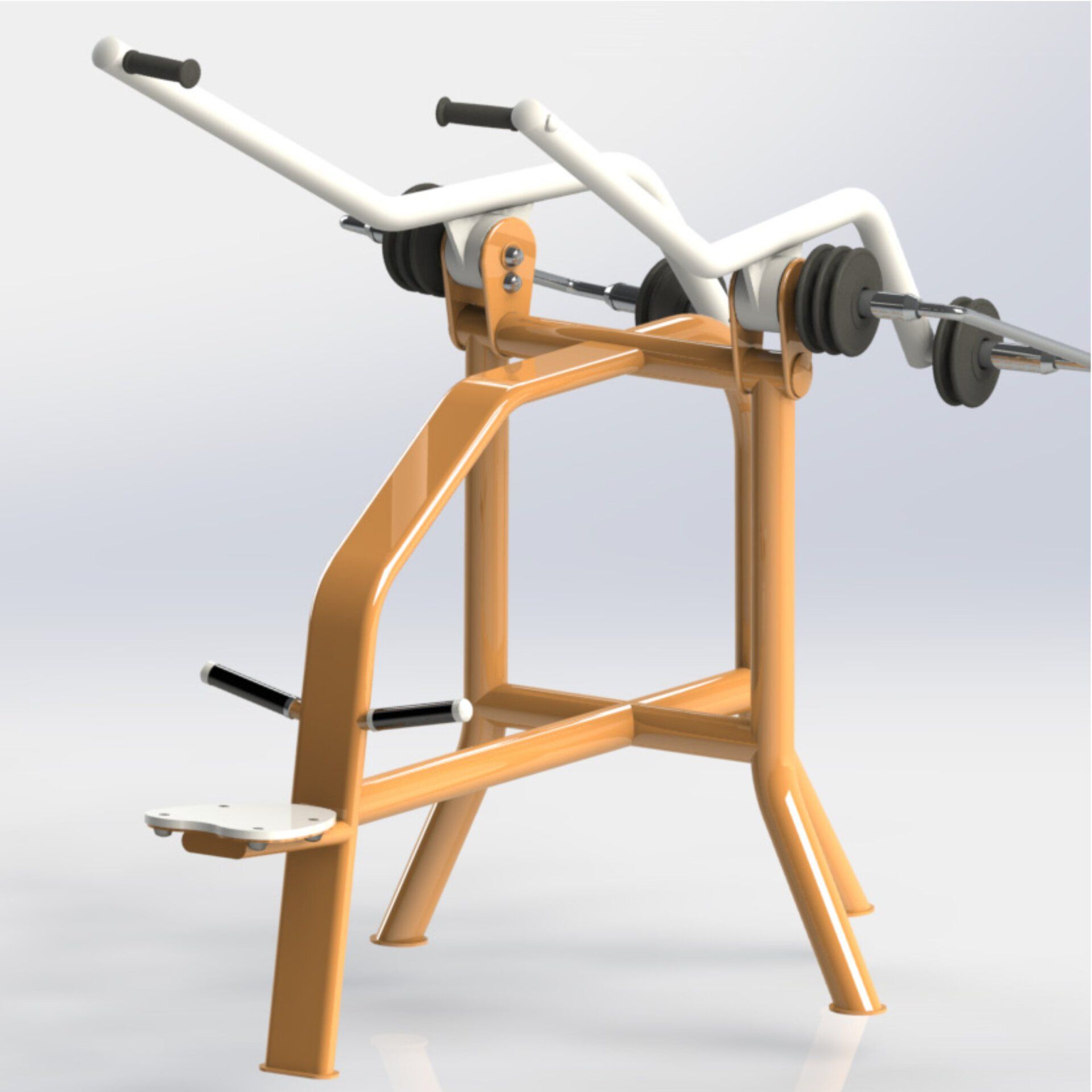

OPTPRI-010
OptiFit Prime Outdoor Variable Load Lat pulldown

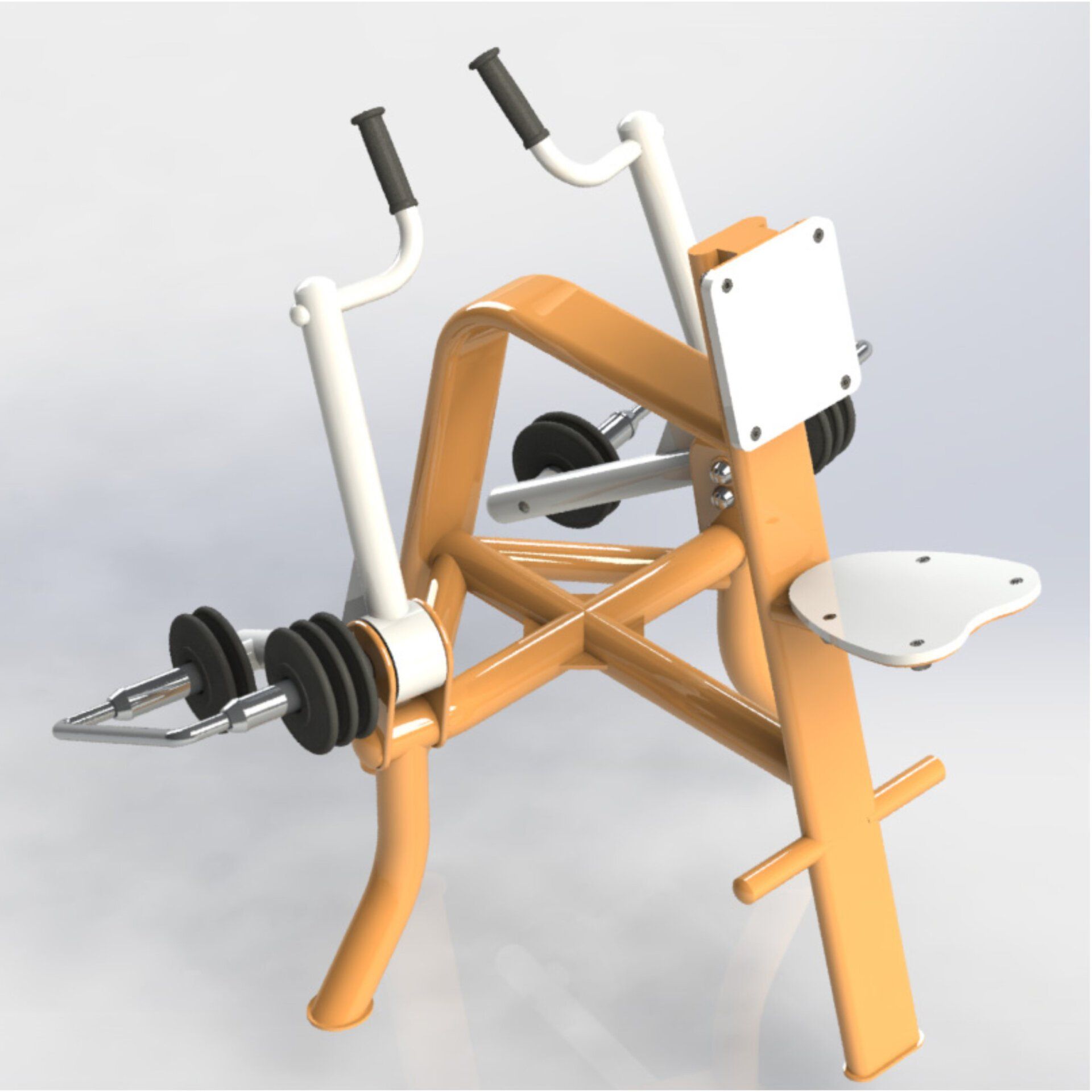

OPTPRI-011
OptiFit Prime Outdoor Variable Load Row
OptiFit Prime Variable Load Strength Specifications
| Product Code | Model | Dimensions | Weight | Weight Load |
|---|---|---|---|---|
| OPTPRI-001 | OptiFit Prime Squat | L 1165mm x W 1349mm x H 1267mm | 133kg | 10 - 50kg |
| OPTPRI-002 | OptiFit Prime Seated Fly | L 828mm x W 1417mm x H 1200mm | 105kg | 5 - 20kg |
| OPTPRI-003 | OptiFit Prime Seated Leg Curl | L 1287mm x W 1908mm x H 1398mm | 114kg | 5 - 50kg |
| OPTPRI-004 | OptiFit Prime Pulldown | L 1187mm x W 1310mm x H 1655mm | 155kg | 5 - 25kg |
| OPTPRI-005 | OptiFit Prime Shoulder Press | L 1507mm x W 1409mm x H 1187mm | 148kg | 10 - 50kg |
| OPTPRI-006 | OptiFit Prime Chest Press | L 1632mm x W 1314mm x H 1629mm | 182kg | 10 - 50kg |
| OPTPRI-007 | OptiFit Prime Leg Extension | L 1301mm x W 1617mm x H 1398mm | 113kg | 5 - 25kg |
| OPTPRI-008 | OptiFit Prime Standing Leg Curl | L 1398mm x W 1225mm x H 1461mm | 113kg | 5 - 20kg |
| OPTPRI-009 | OptiFit Prime Abdominal Crunch | L 1353mm x W 1195mm x H 1335mm | 94kg | 5 - 10kg |
| OPTPRI-010 | OptiFit Prime Lat Pulldown | L 1331mm x W 1969mm x H 1760mm | 161kg | 10 - 50kg |
| OPTPRI-011 | OptiFit Prime Mid Row | L 1431mm x W 1319mm x H 1275mm | 149kg | 10 - 50kg |
