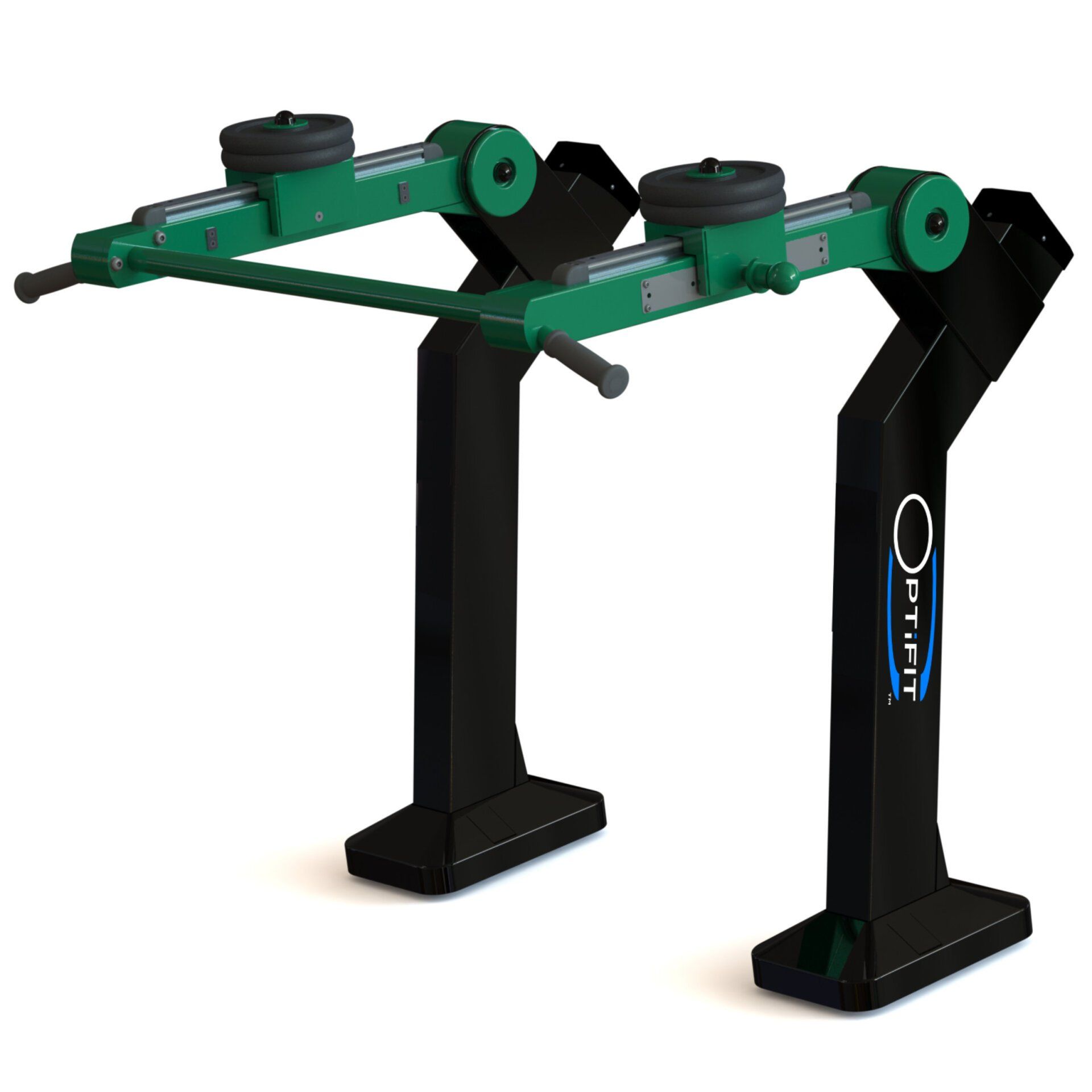

OPTIGN-001 OPTIFIT IGNITE OUTDOOR VARIABLE LOAD SQUAT

Product Specification

Variable Load System:

The variable load system on our Ignite outdoor strength equipment allows users to vary the weight they lift by simply pulling a sprung loaded plunger and sliding the weight along the length of the stainless steel rail to vary the load on each side of the equipment and the plunger locks the weights in place. Starting weight is zero plus the weight of the lifting, pressing or pulling arm.

Standard Weight Load:

• Up to 30kg on each side (Using 2.5kg 5kg or 10kg plates)
• Providing exercise loading of 5kg - 60kg

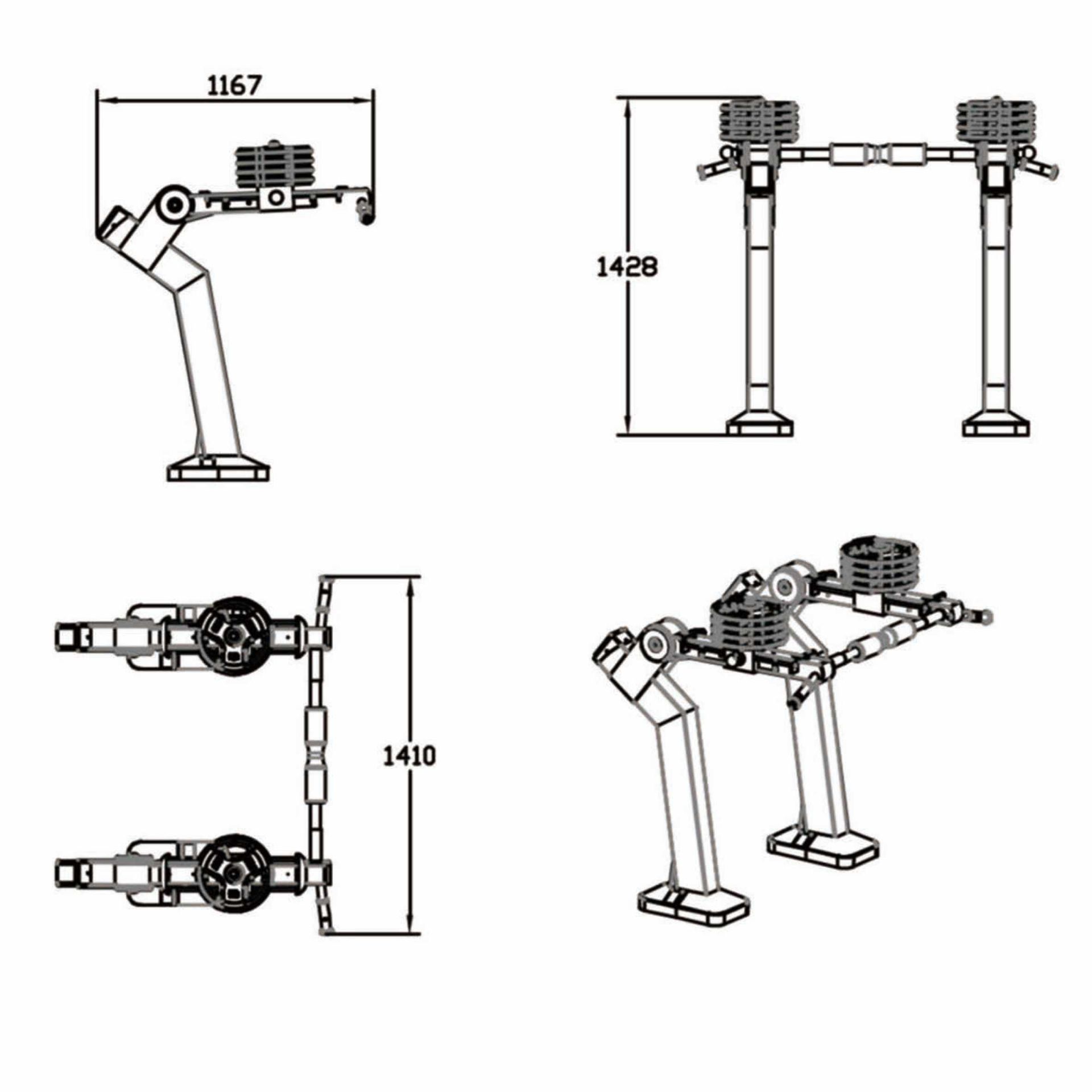

Weights & Dimensions:

• Length: 1167mm
• Width: 1410mm
• Height: 1428mm
• Weight: 130kg

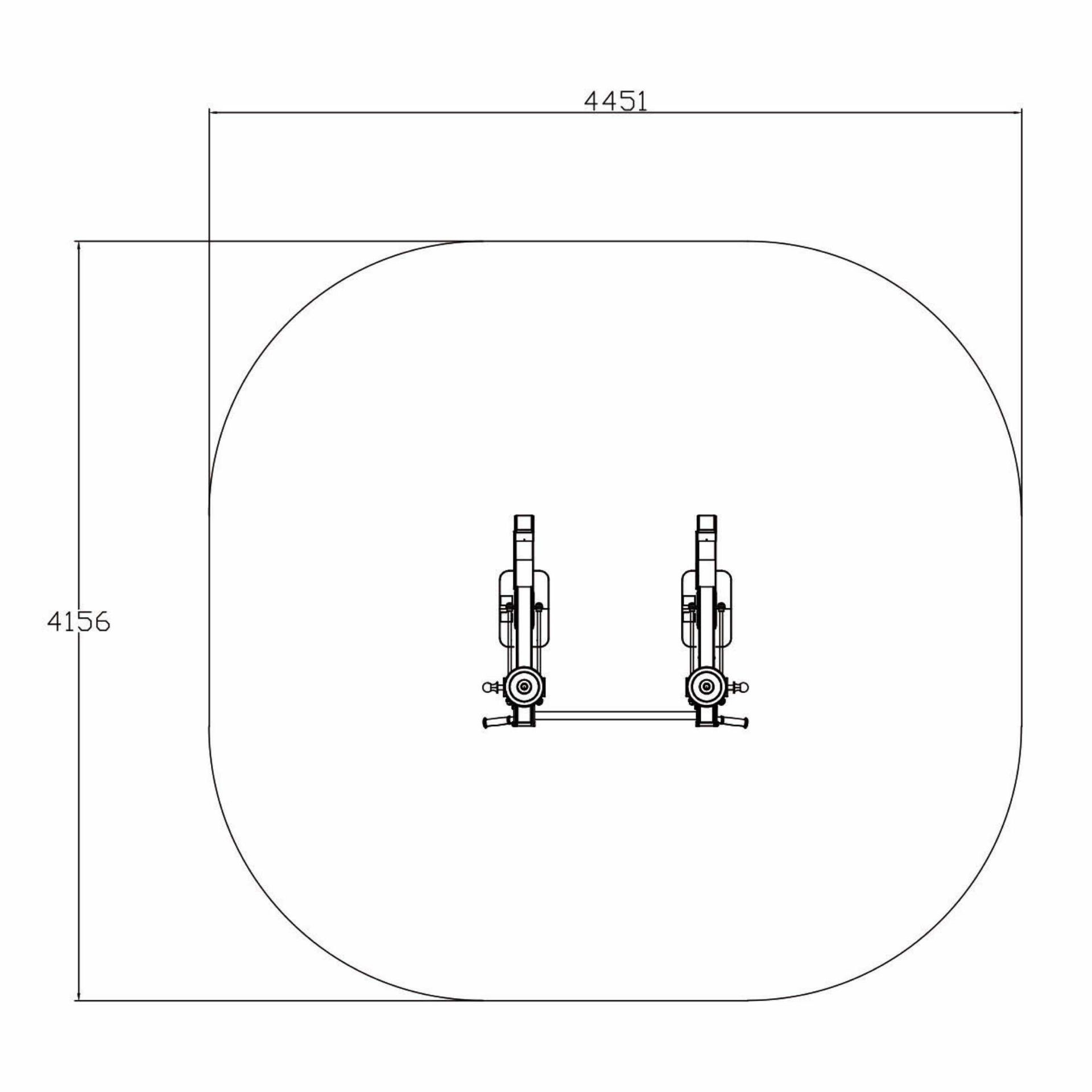

Recommended Safety Area

• L 4156mm x W 4451mm

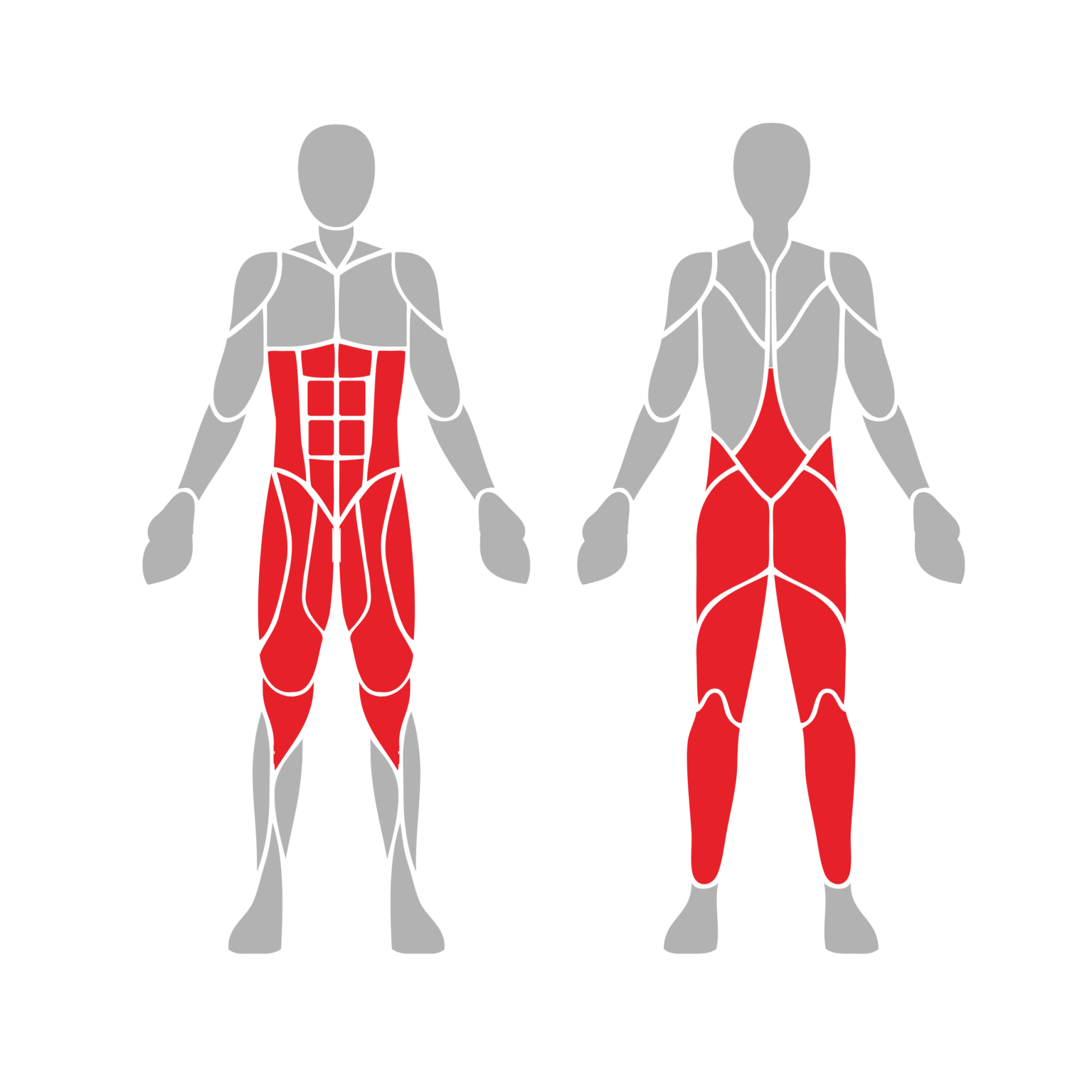

Muscles Used:

Works the lower body, specifically your gluteals, quadriceps and hamstrings

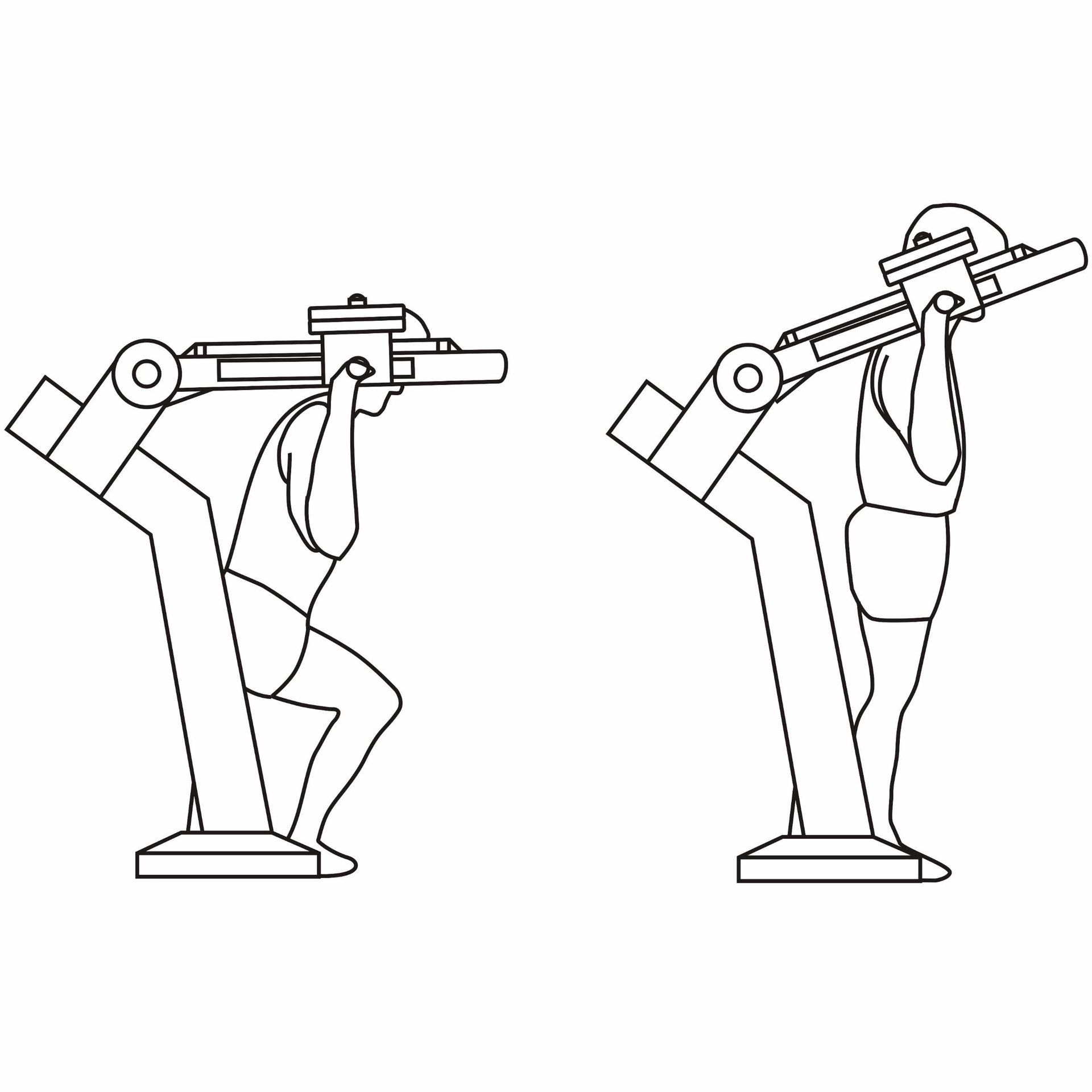

Instructions for Use:

• Adjust weights on both sides of the equipment by pulling plunger and sliding weight sled along the length of the rail.
• Bend knees slowly to position shoulders under the bar pads and take a shoulder width stance.
• Keeping back straight and heels flat on the floor, squat down up to a 90’ bend at knees.
• Repeat exercise until you have completed the required reps.

User Notice:

• Obtain advice from your doctor before undertaking any form of physical exercise.
• Maximum User Weight: 150kg.
• Equipment is to be used for its intended purpose and by one user only.
• Suitable for users with an overall height greater than 140cm.
• Outdoor Fitness Concepts Ltd and the site providers do not take any responsibility for any injuries that may occur when using the equipment.
